MSE
Reinforced Soil Embankment™
A precast panel retaining wall system designed for bridge abutments, highway walls, dams & mining, aviation and pressure relief walls.
Meets spec and accelerates construction.
Exclusive licensee of the Reinforced Soil Embankment™ (R.S.E.) Panel Wall, one of Hilfiker’s original precast panel systems for applications such as bridge abutments, highway walls, dams & mining, aviation and pressure relief walls.
5x5'
square panels
5x10'
rectangle panels
50
state DOT approvals
Key Benefits
Meets Specifications
Accelerated construction
Improved compaction
Custom Facings
Features & Benefits
EKHO’s Reinforced Soil Embankment System™ has many performance & installation benefits over cast-in-place construction methods.
Safer Site
Faster process to complete, with less labor on site and a safer jobsite.
Precast Concrete Quality
No concrete quality issues onsite, manufactured in a NPCA certified precast facility.

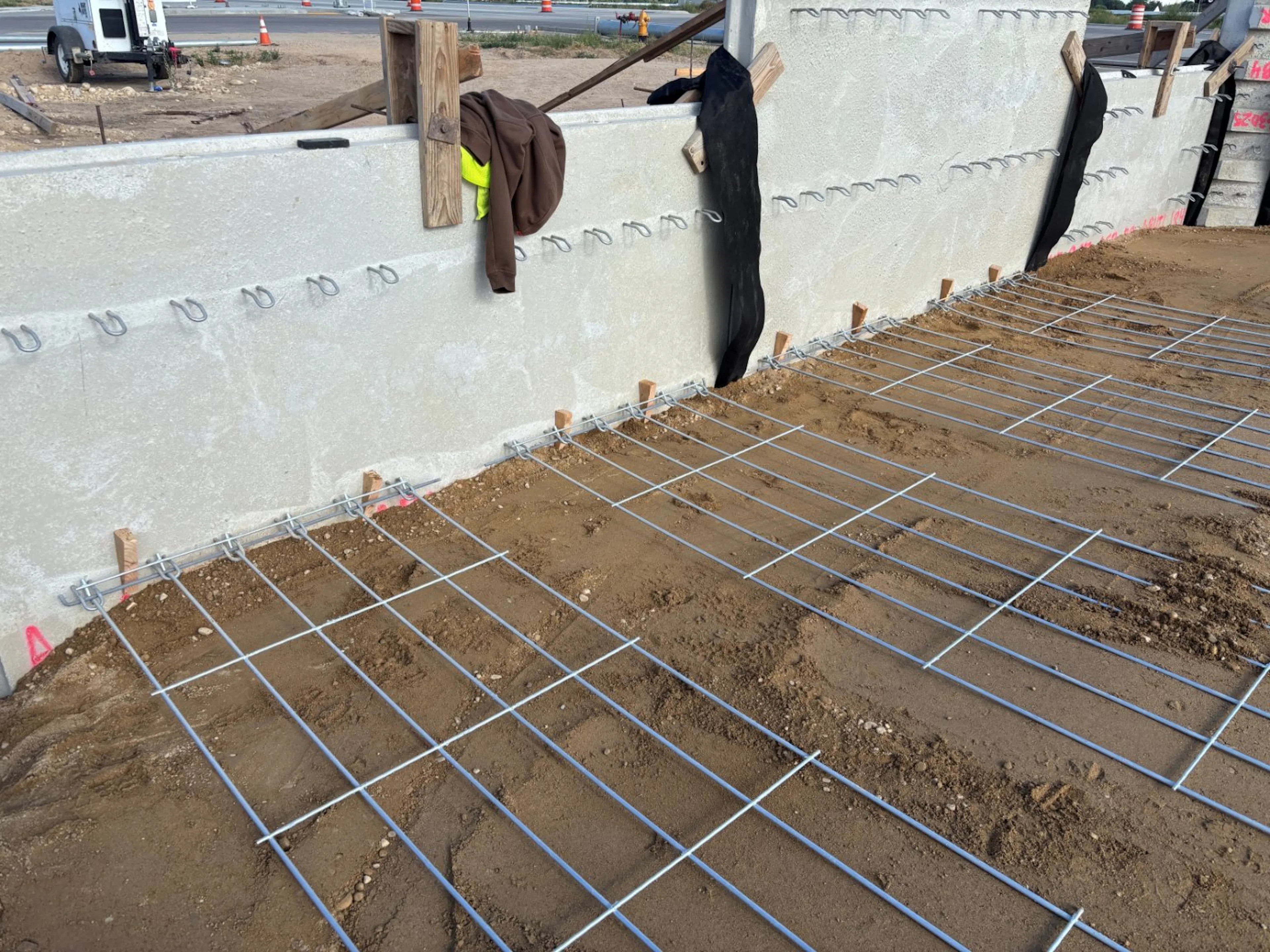

Soil Reinforcement Mats
Connected with a single pin to an anchor embedded in the panel, installation is a straightforward, repetitive process.
Design Details at a Glance
Standard Panel Dimensions
Panels | Dimensions |
|---|---|
Panel Thickness | 5.5" Structural Thickness |
Square Panel Size | 5x5' Panel Facing |
Rectangle Panel Size | 5x10' Panel Facing |

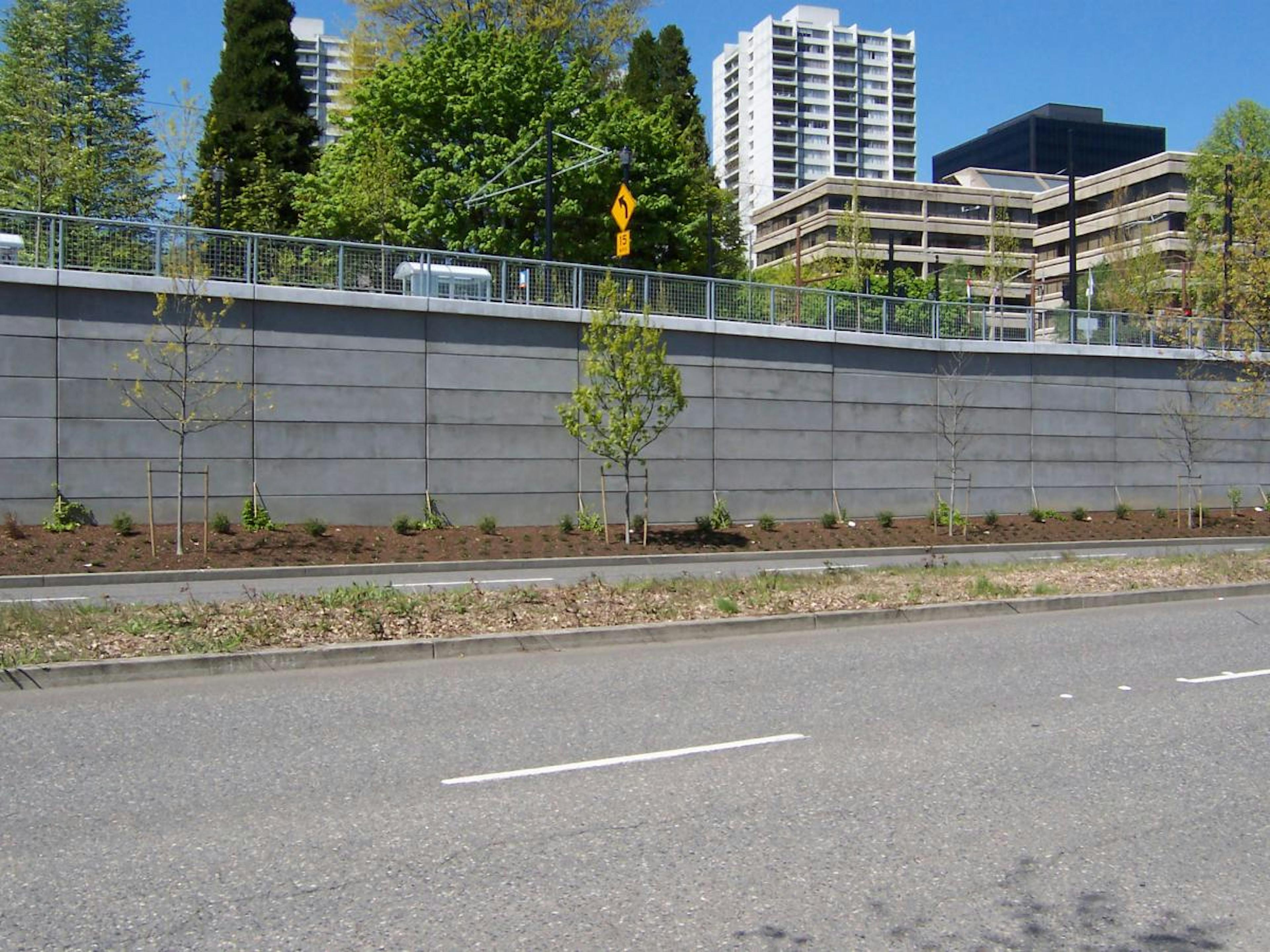

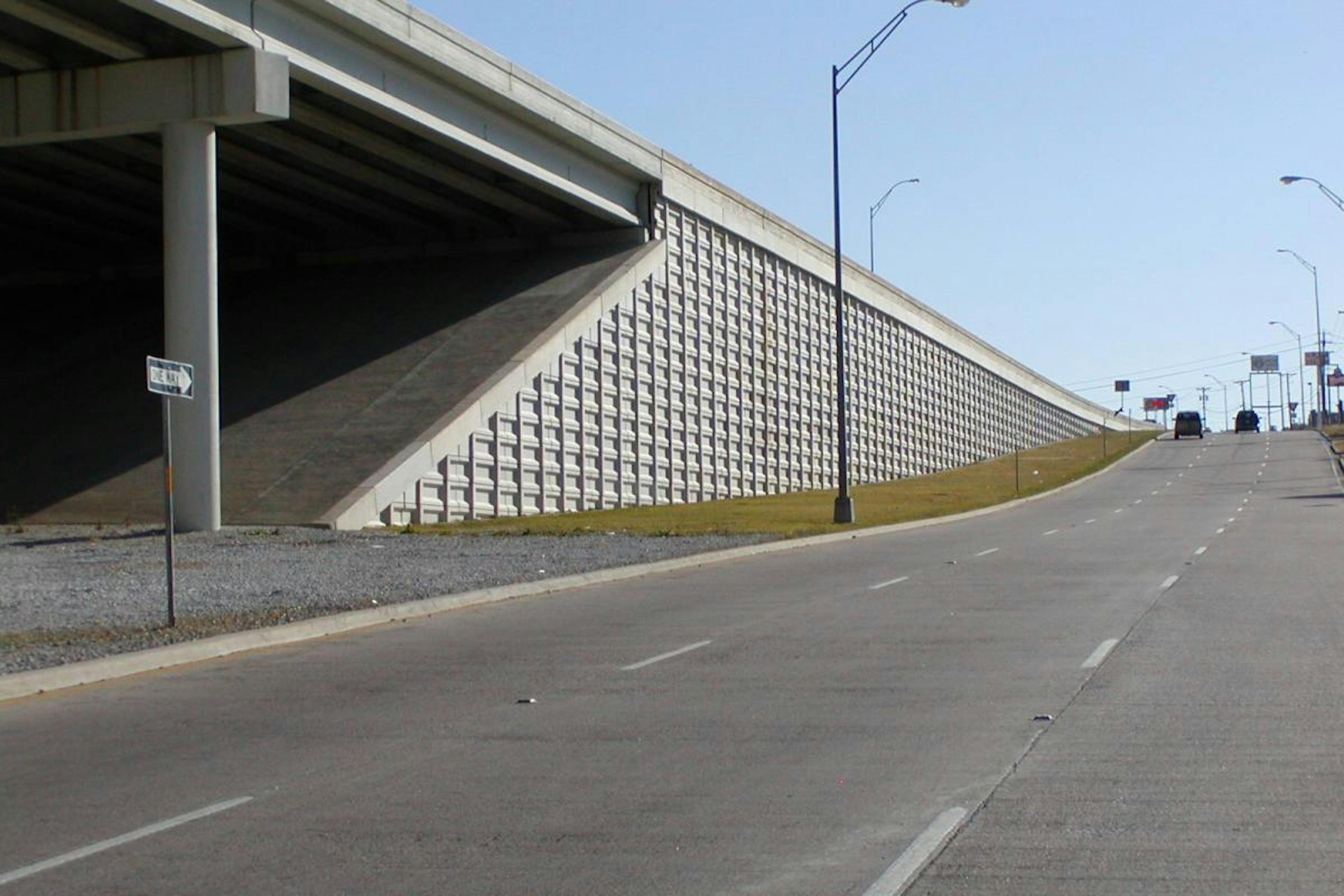

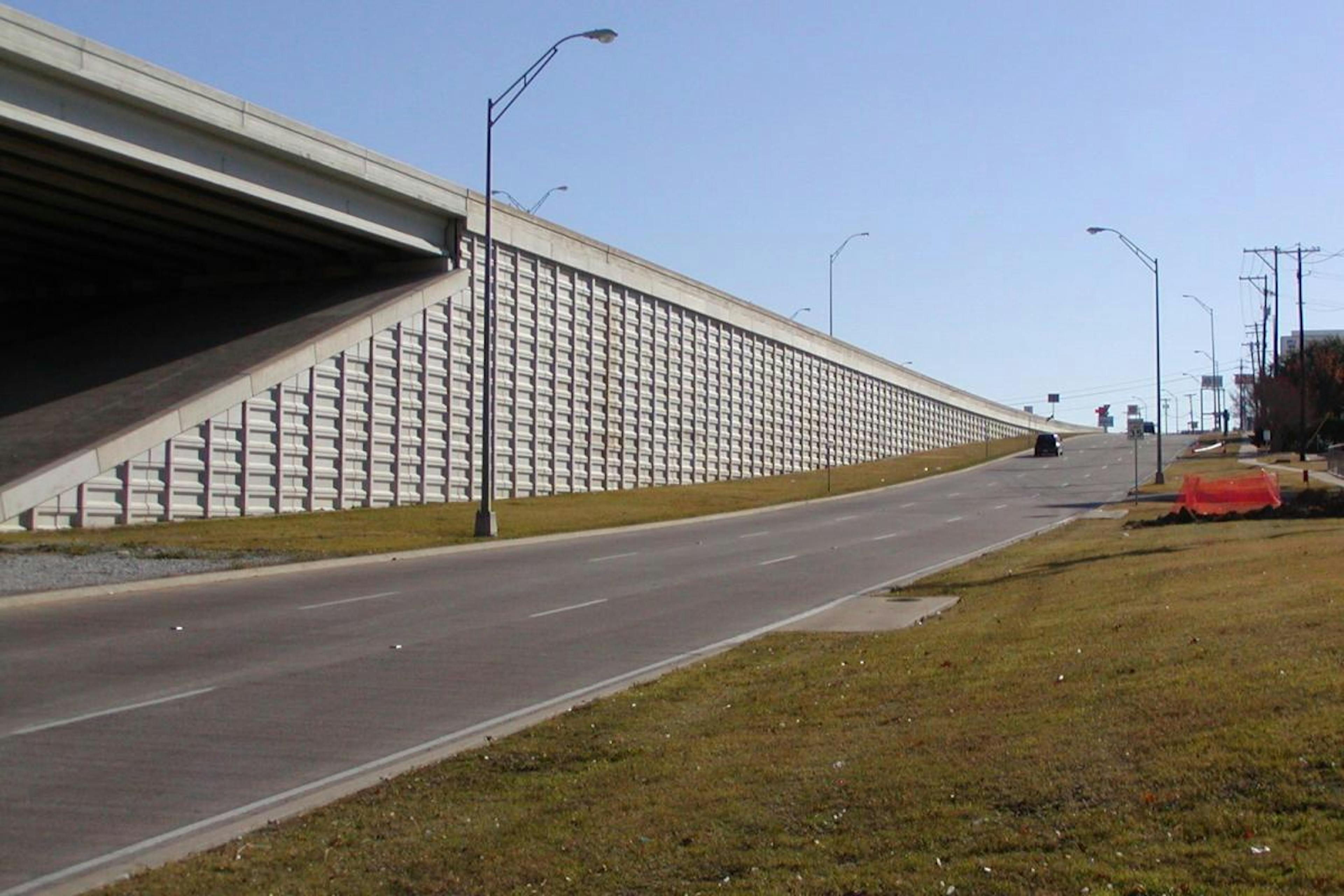

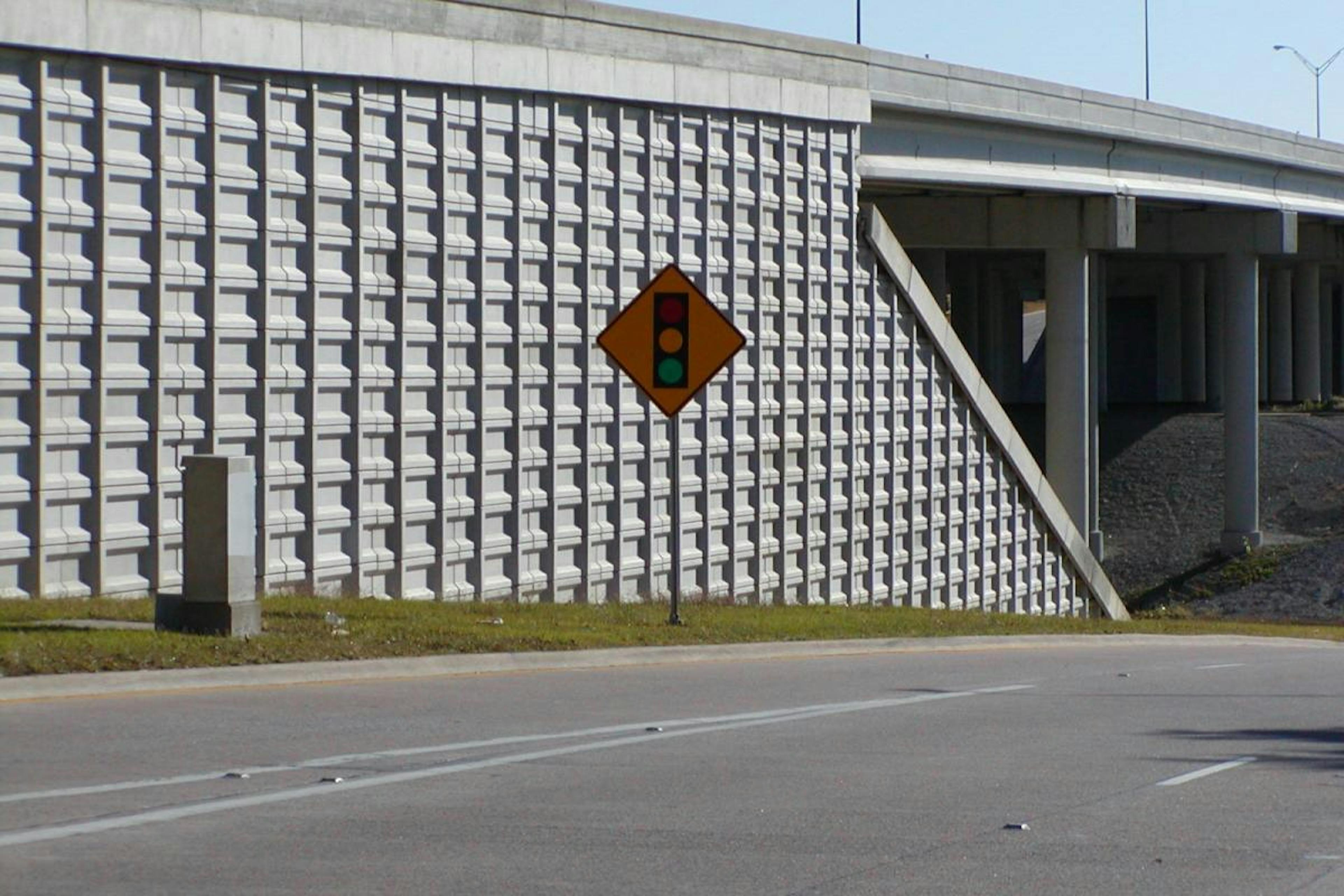

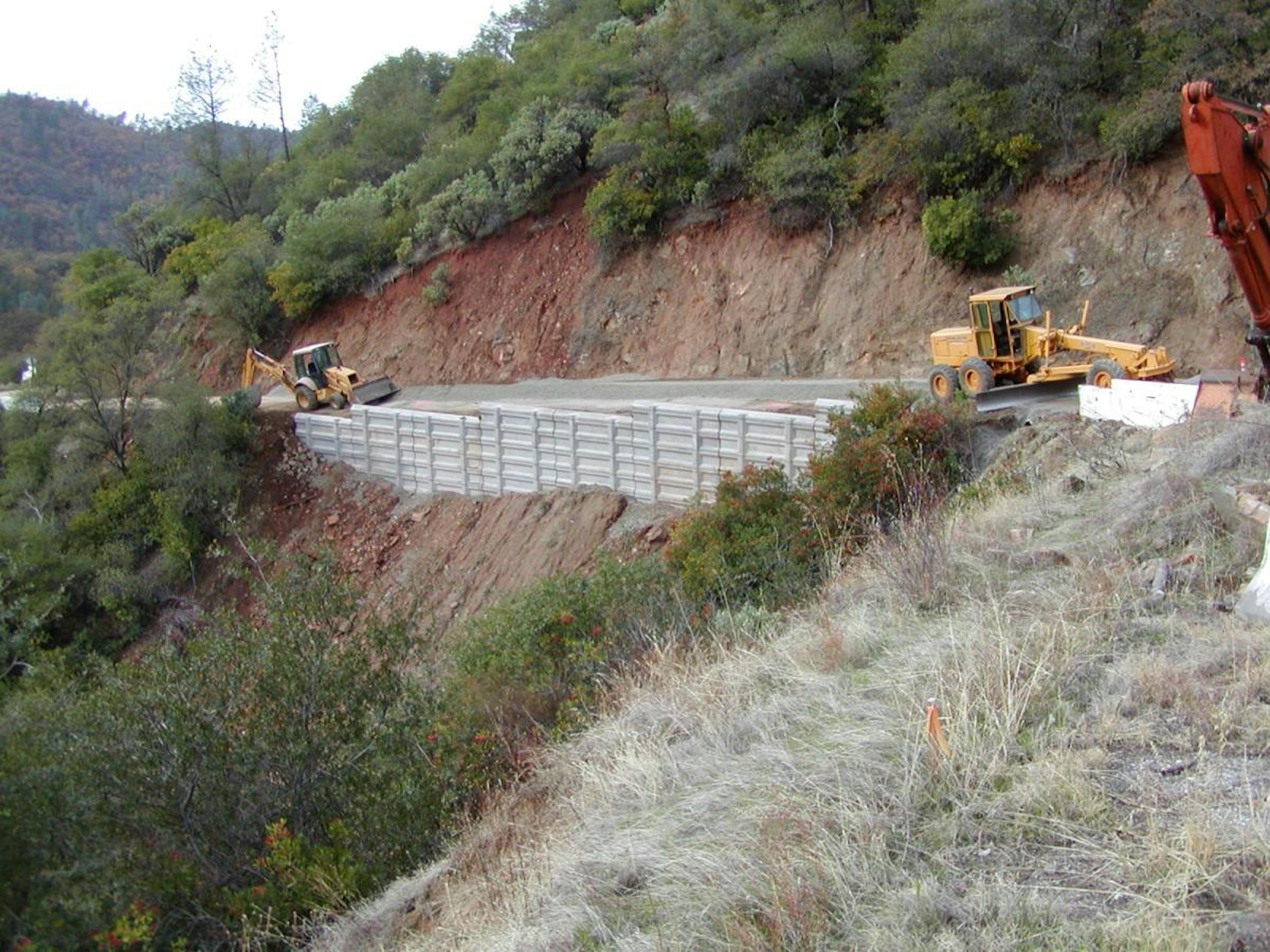

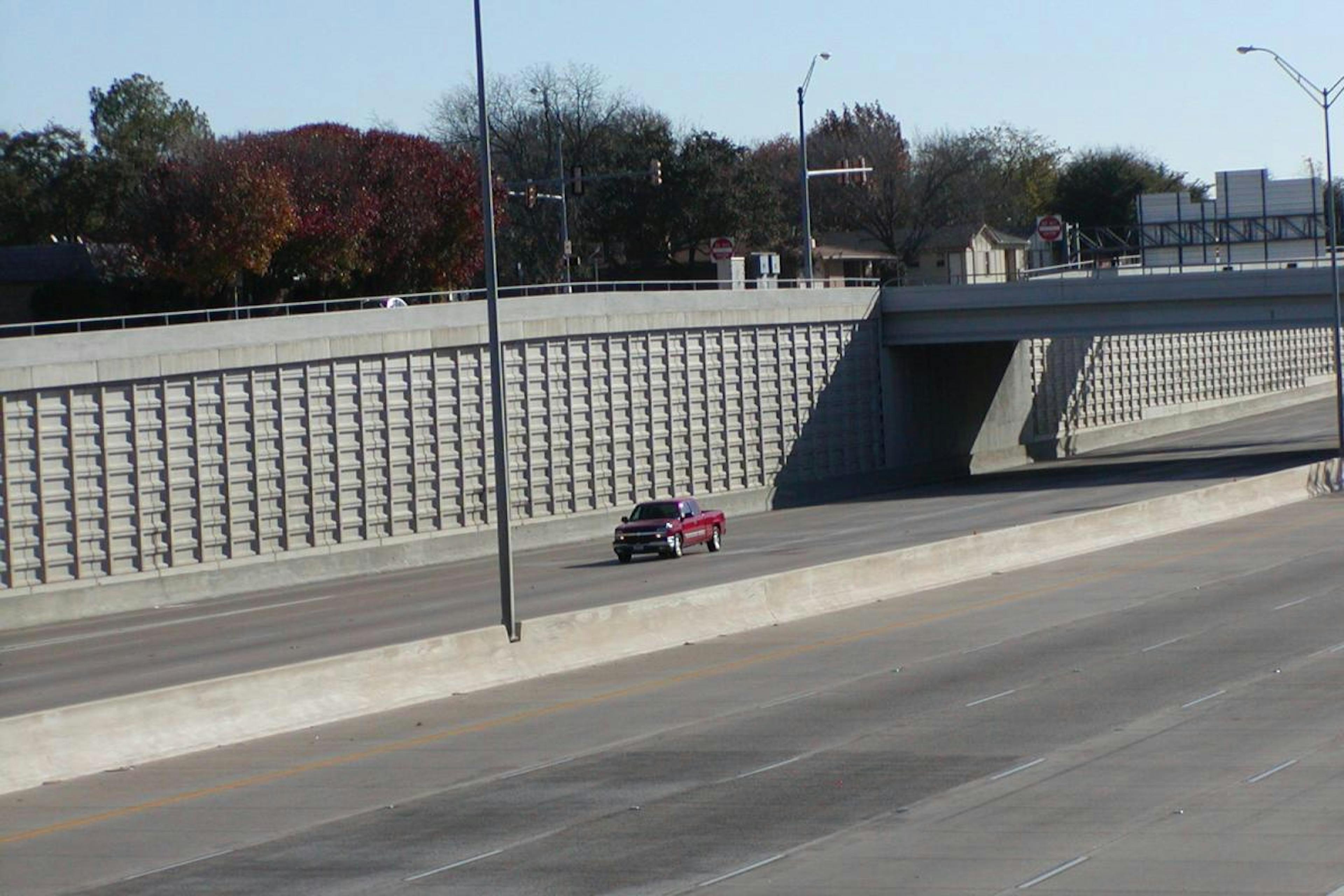

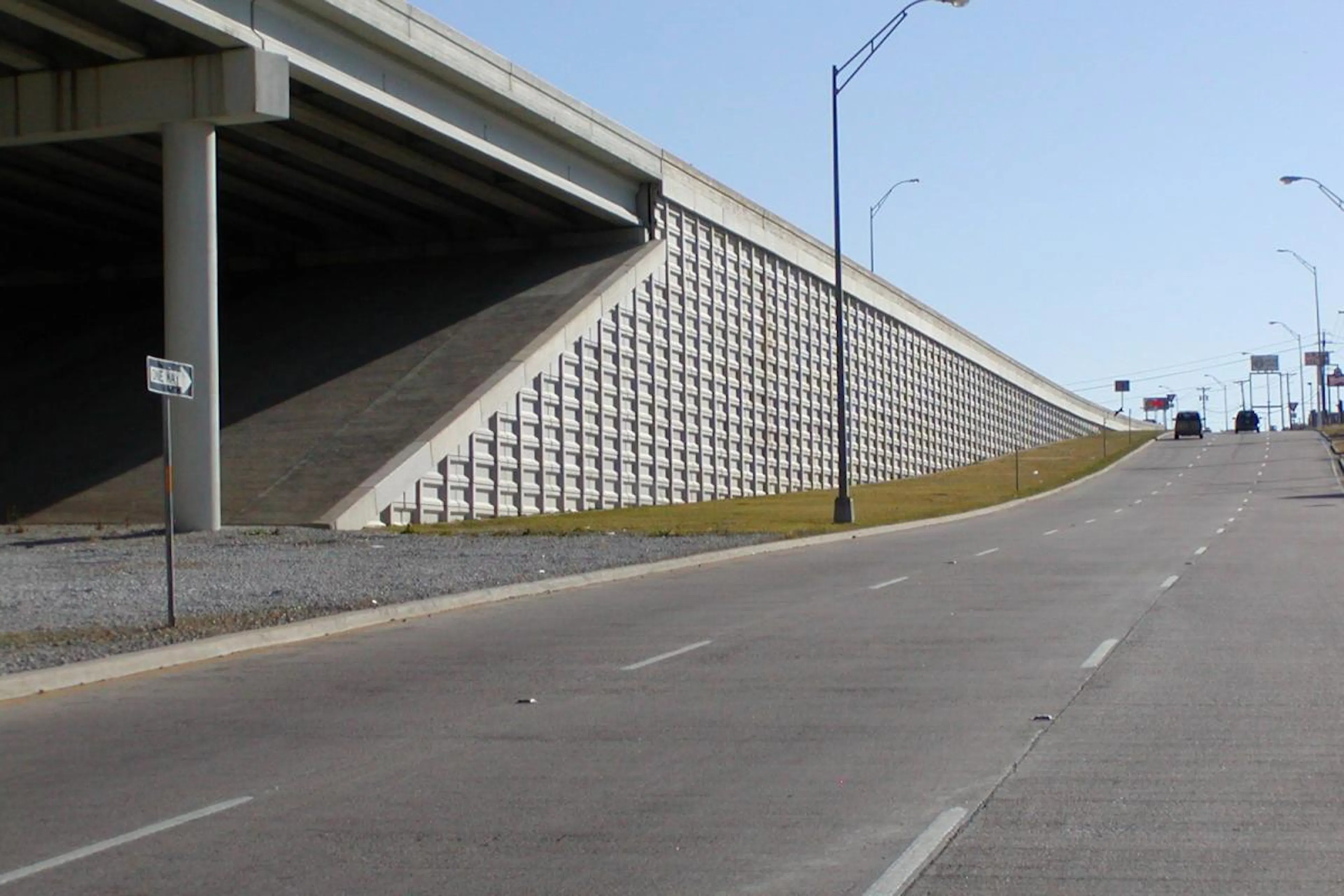

GALLERY
Visualize the end result with us
