Safety Device

MASH TL-5 crash-tested Barrier

North America’s first MASH TL-5 integrated noise barrier and vehicle restraint system

Leading the way in noise protection and safety

Our MASH TL-5 crash-tested Barrier combines industry-leading dual-sided sound absorption with the strength and reliability of a precast concrete safety barrier.

SAFETY

Highest Level of Roadside Safety

FHWA

Reimbursement Eligibility

DOT

approved product lists

Key Benefits

Impact Resilience

Sustains & redistributes tractor trailer impacts

FOUNDATIONLESS

Free-standing with shallow anchoring

Space-Saving

Integrated structure

1st

MASH TL5 System in North America

Foundationless

Free-standing, modular barrier engineered to simplify construction.
Reduces associated design risks and speeds up the noise wall installation portion of a project.
Shallow anchoring depth requires only 6.69 in (17 cm) for anchoring and can easily be removed if ever required.
Minimizes underground utility disruption

Crash-Tested Reliability

Proven to withstand rigorous MASH TL-5 testing, ensuring safety performance transportation owners can rely on.
Additional concrete beam is incorporated to protect the wall system where truck contact occurs, providing additional protection for the noise barrier panels and ensuring durability during collisions.

Maximum Noise Reduction

Double-sided absorptive panels effectively reduce noise and eliminate reverberation.
Minimal distance to the noise source as an effective noise mitigation strategy.

Space Efficiency

Integrated safety and noise barrier structure for efficient land use.

Precast Concrete

Delivers the long-term durability and service life required for today’s highways and roadways.

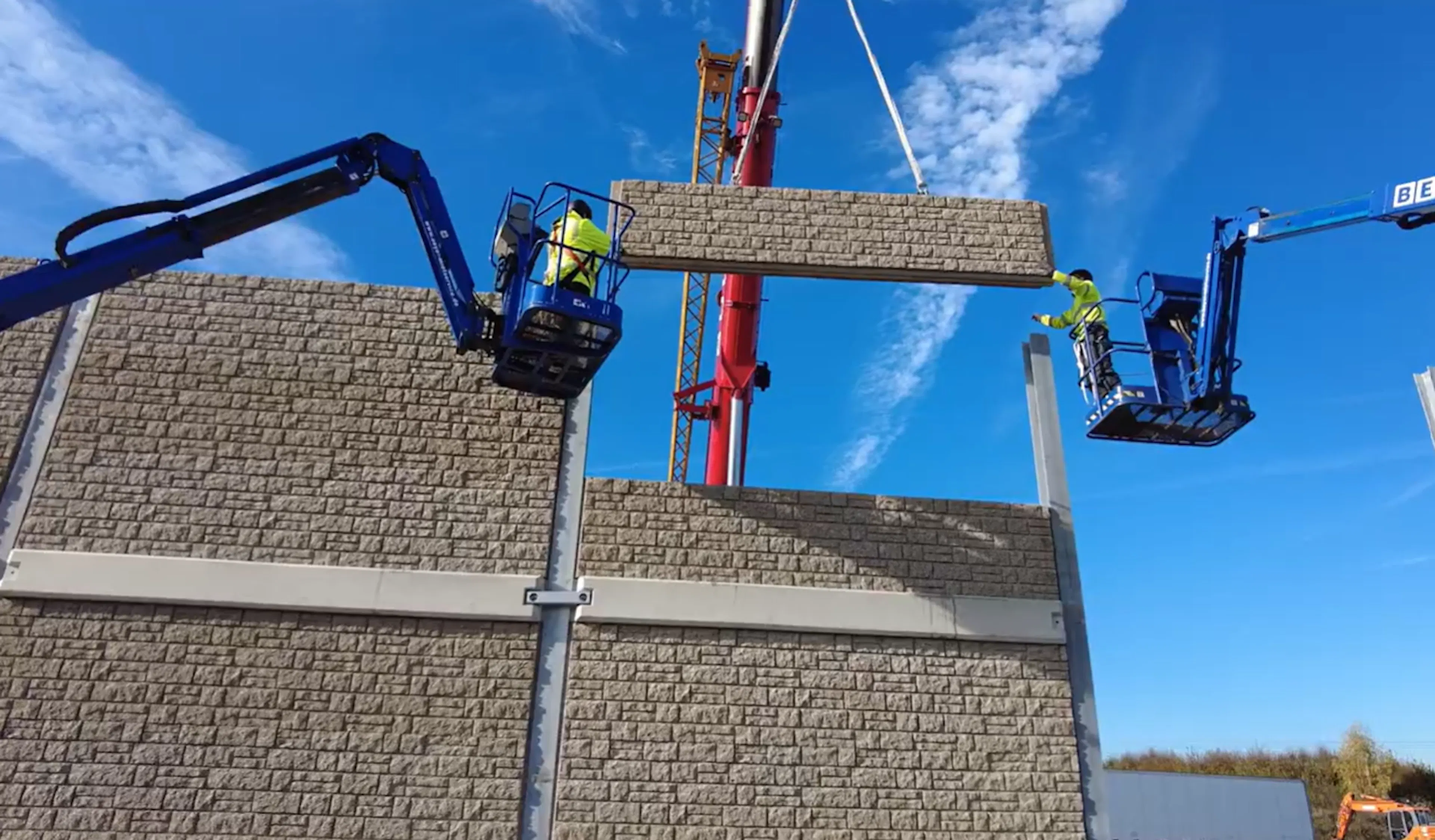

Design Details at a Glance

Permanent highway and roadway noise walls that can be designed in the clear zone where space limitations exist, or on the center median to benefit from noise reduction on both sides of a roadway.

Shallow anchoring depth : 6.69 in (17 cm)
Minimum installation length: 135 ft (41.2 m; 9 base elements)
Max. construction height: 314.96 in (800 cm) according to local wind loads
Built-in concrete beam at the height of a truck’s impact zone
NRC: 0.70-0.85
