AL1S

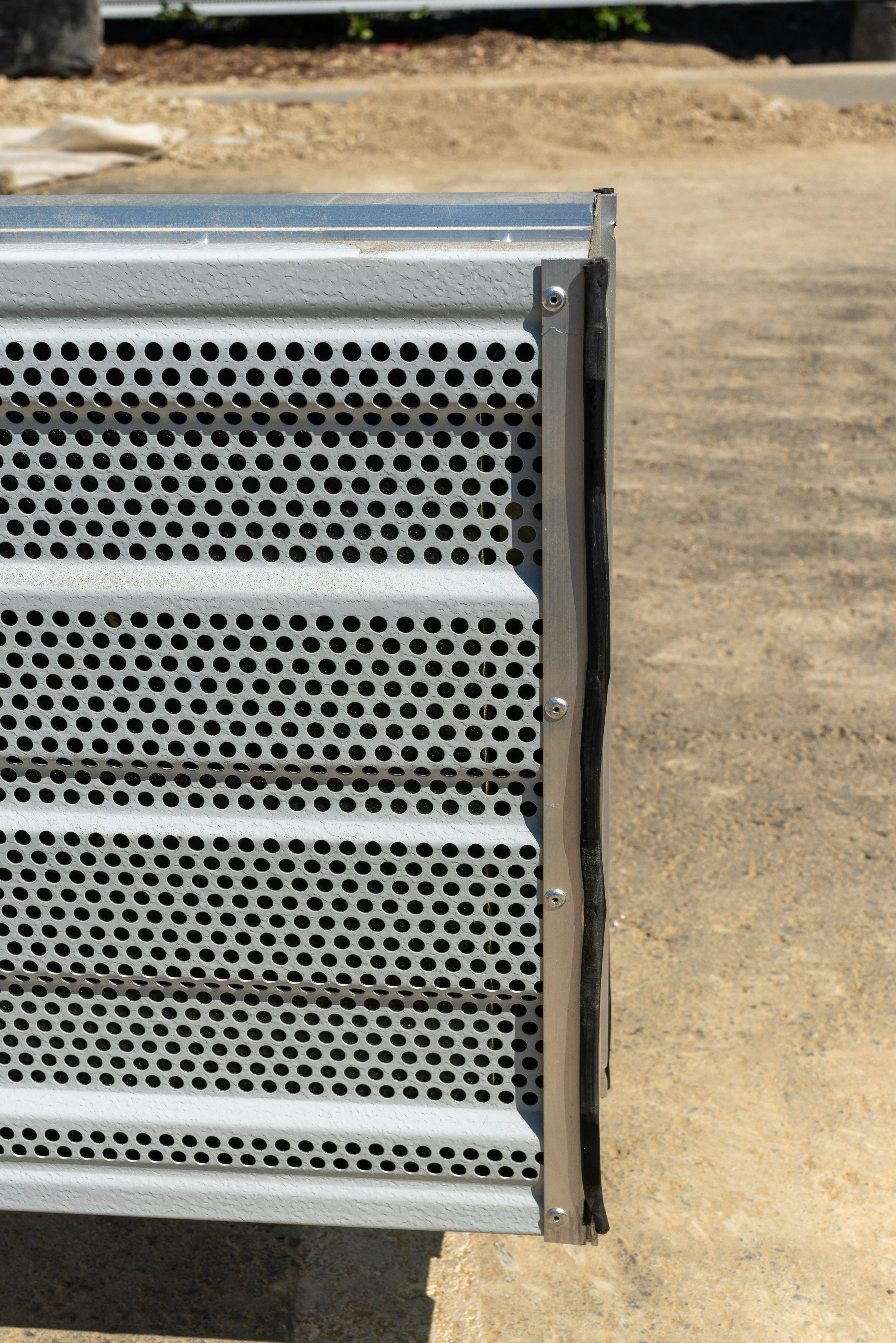

Absorptive perforated panel
NOISE PROTECTION
Aluminum Noise Barrier
An engineered noise barrier that can be used in both structure-mounted or ground-mounted applications.
An engineered system at the speed you need
Cost effective, flexible aesthetics, and easy installation are just some of the reasons why clients specify our aluminum system. Especially when faced with demanding construction schedules, our aluminum noise walls can be engineered by our in-house team to meet specific wind load requirements, supplying a turnkey wall system that is easily installed alongside roadways and building properties.
20 ft maximum
panel lengths
6.1 lbs / sq ft
maximum panel density
Noise Reduction
Absorptive/ Reflective options
Key Benefits
Lightweight Panels
Reduces dead loads for structures
Noise Reduction
Absorptive or reflective panels
Colored Finishes
Powder or coil coated colors
Durable System
Longevity and low maintenance
Features & Benefits
Shelter noise-emitting mechanical equipment or busy loading docks to achieve enhanced privacy and security for the premise.
Installation Benefits
Rapid Assembly
Drop-in-place, modular panel system enables fast construction with minimal specialized labor.
Lightweight Components
Reduced equipment requirements
Prefabricated
Arrives on site ready to install, and customizable for a wide range of noise mitigation project requirements.
Easy Handling
Tongue and groove jointed panels for secure connection and simple assembly.
Design Details at a Glance
Lightweight absorptive or reflective aluminum noise wall system is the perfect solution for bridges and other elevated structures.
PANELS
- 125 mm (5 inches) panel thickness
- Available in 3 – 20 foot lengths
HEIGHT
- Each panel is 1.64 ft / 0.5 meter high
- With tongue and groove edges, panels can be stacked to desired project height.
POSTS
- Adapts well to W6 posts and can accommodate larger posts as well.
- Structure-mounted hot dipped galvanized steel posts.
- Optional steel cable post connection for steel cable for improved safety.
Applications

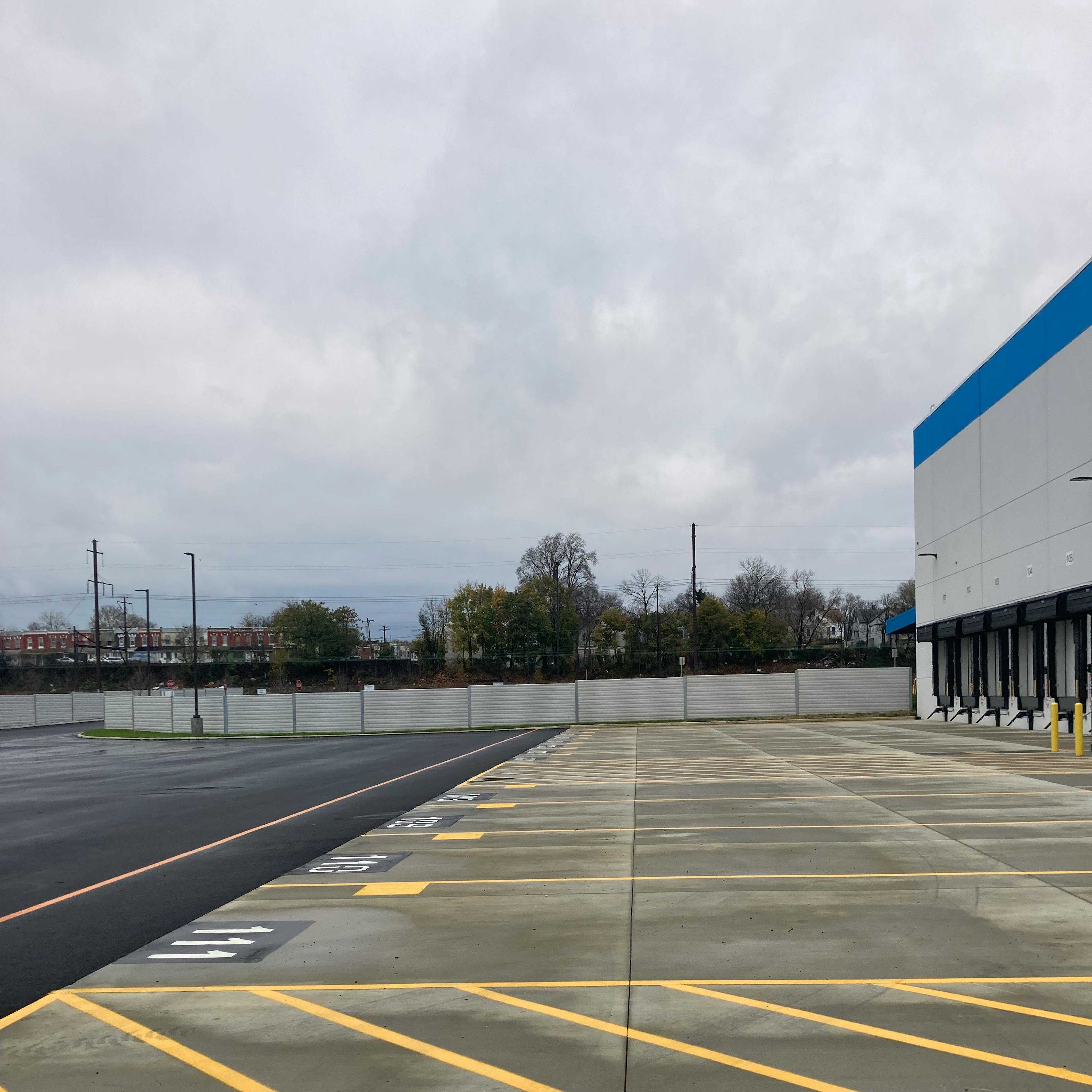

Industrial, Commercial, Institutional Properties

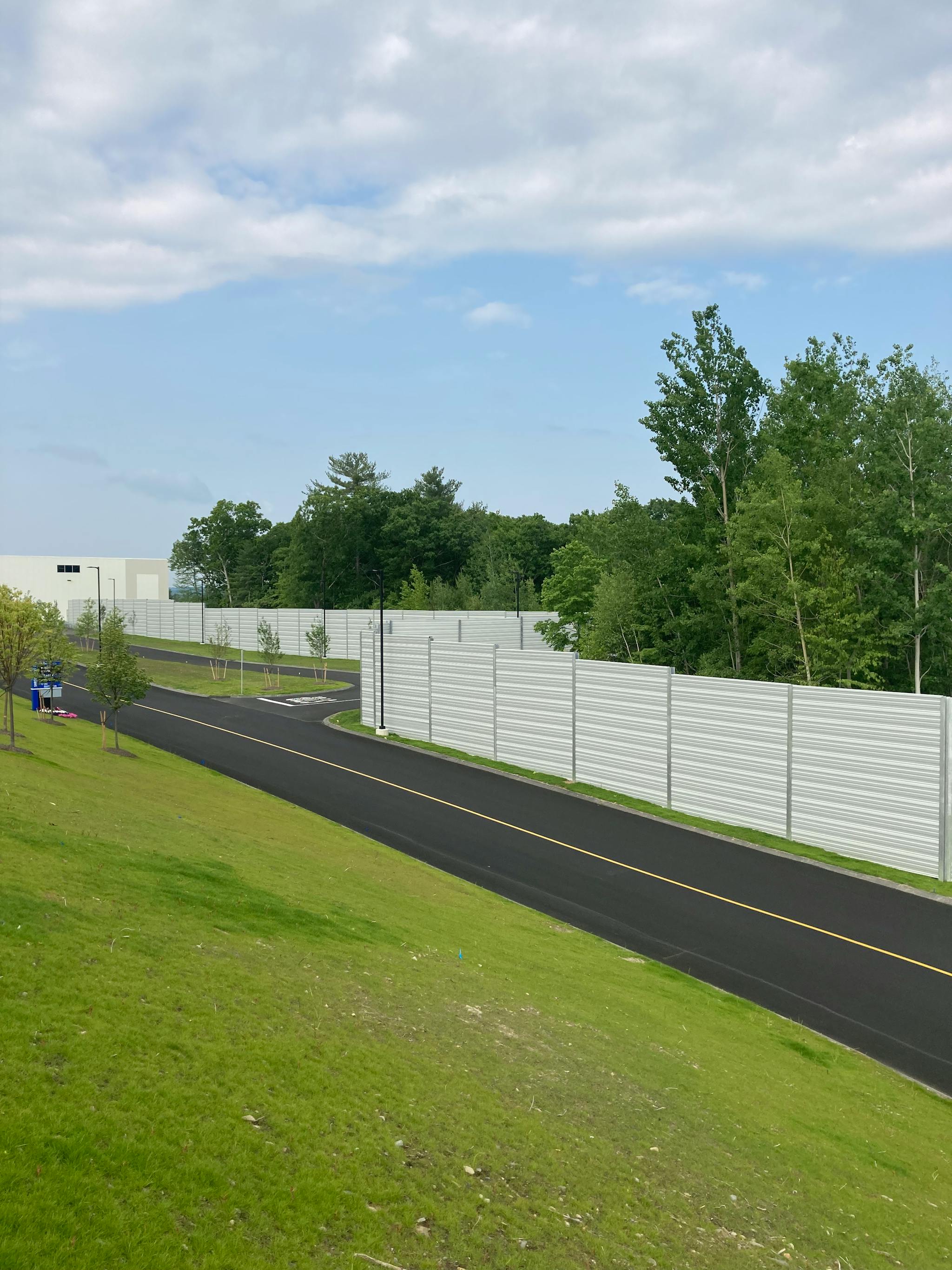

Roads, Highways, & Bridges

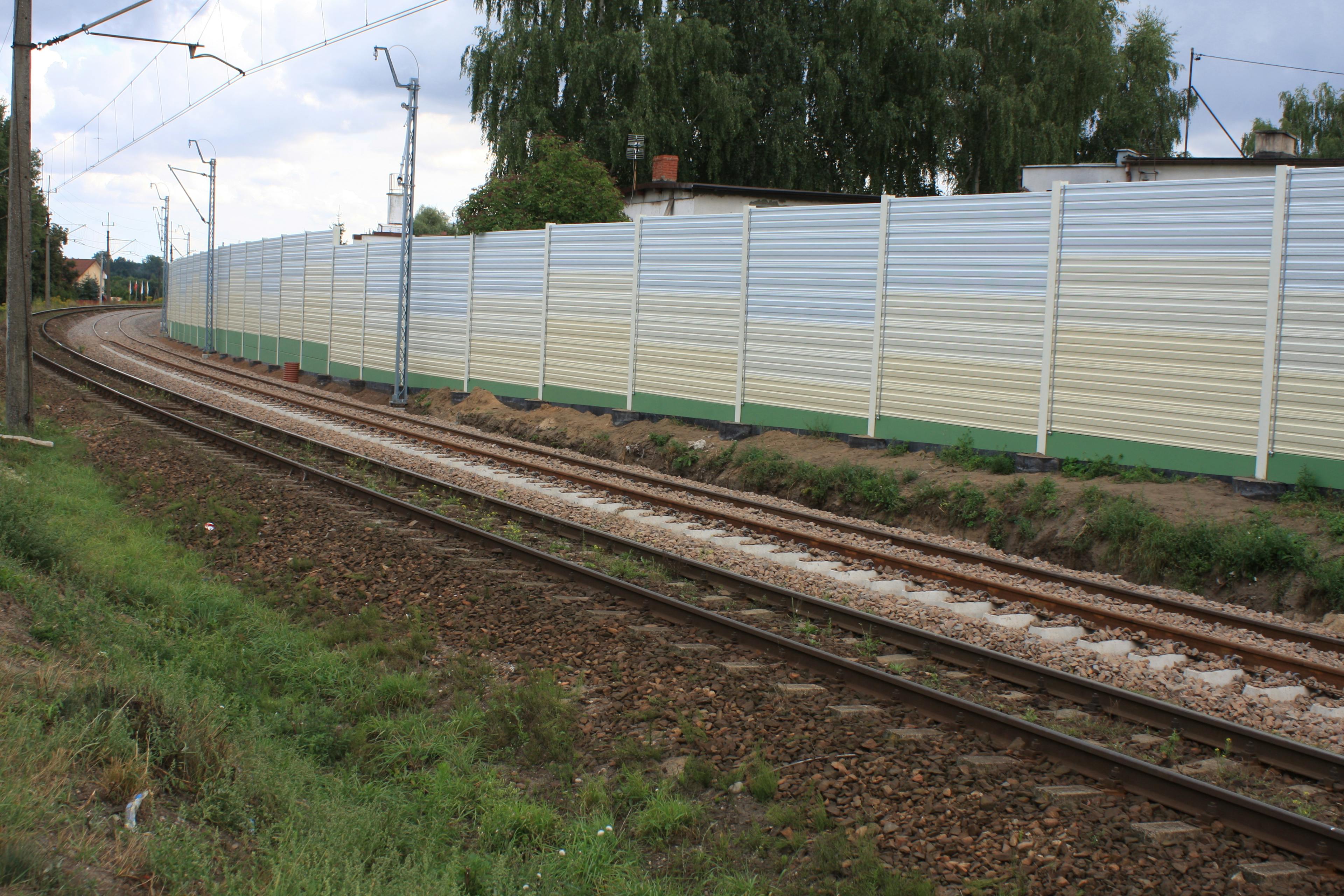

Rail & Transit
Building Rooftop Enclosures

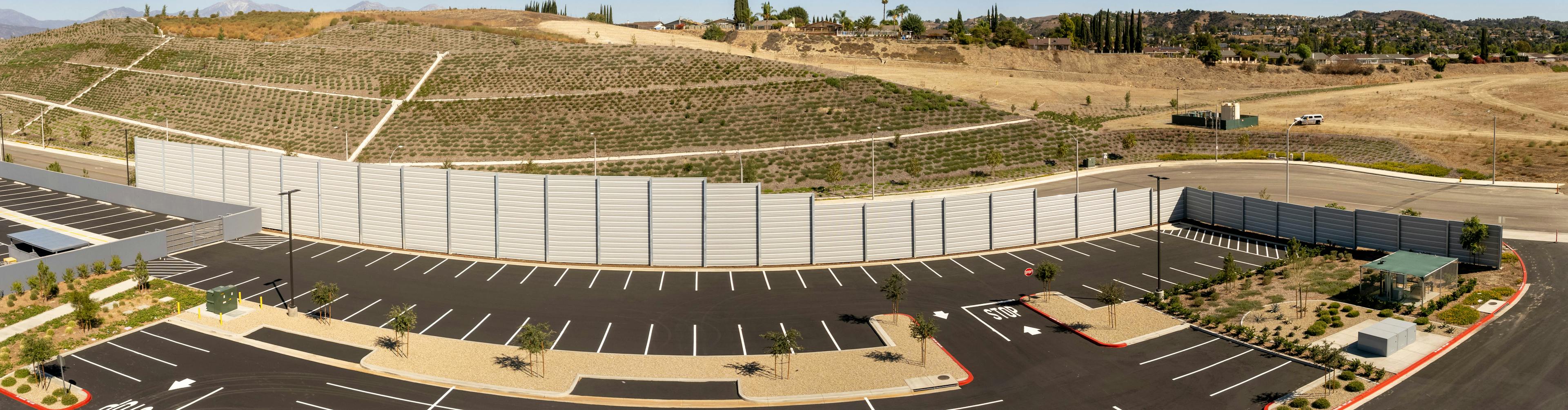

Perimeter Walls & Enclosures
Scalable Systems

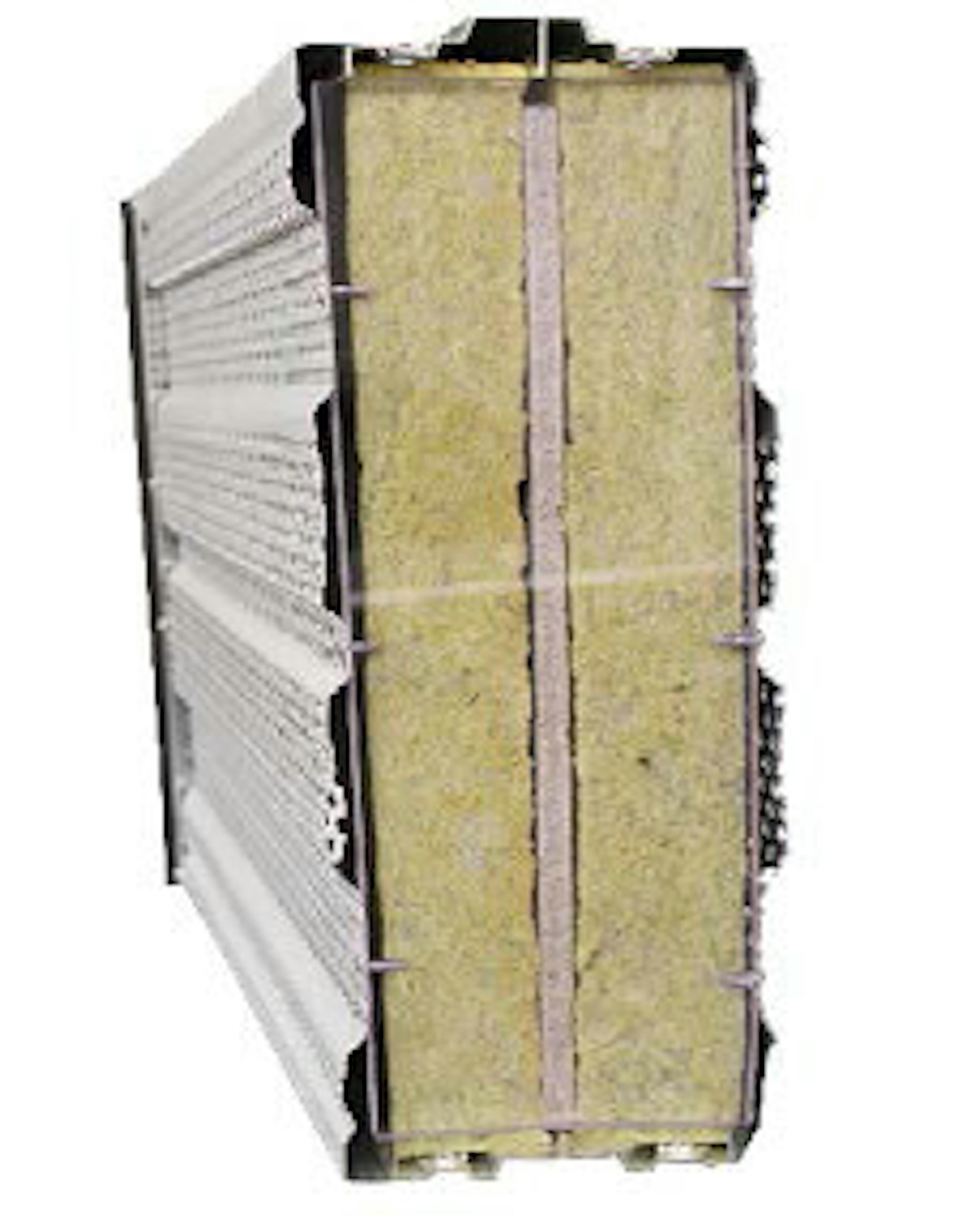

AL2S
Dual Absorptive Perforated Panel
AL3S
Smooth reflective custom color panel

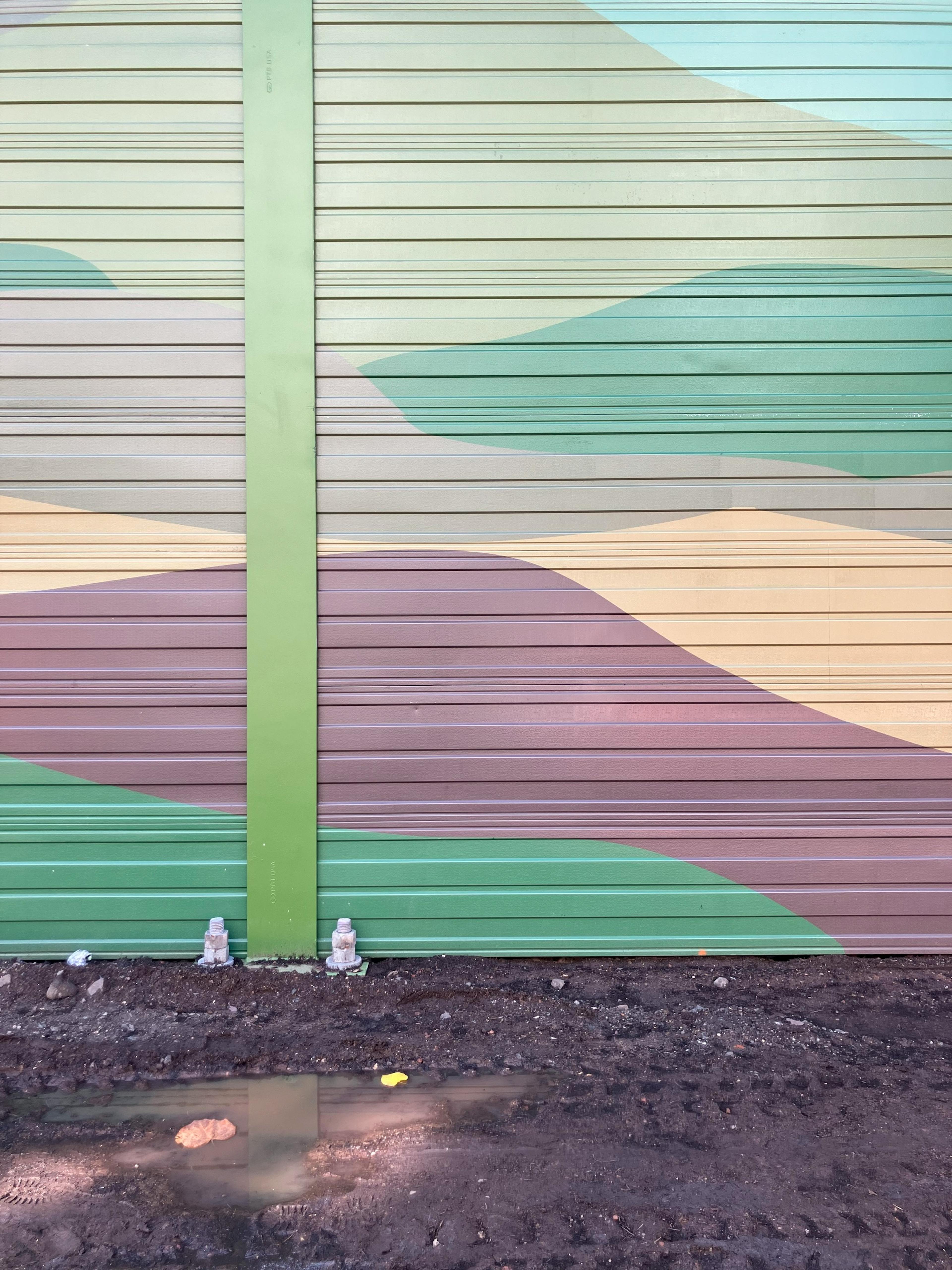

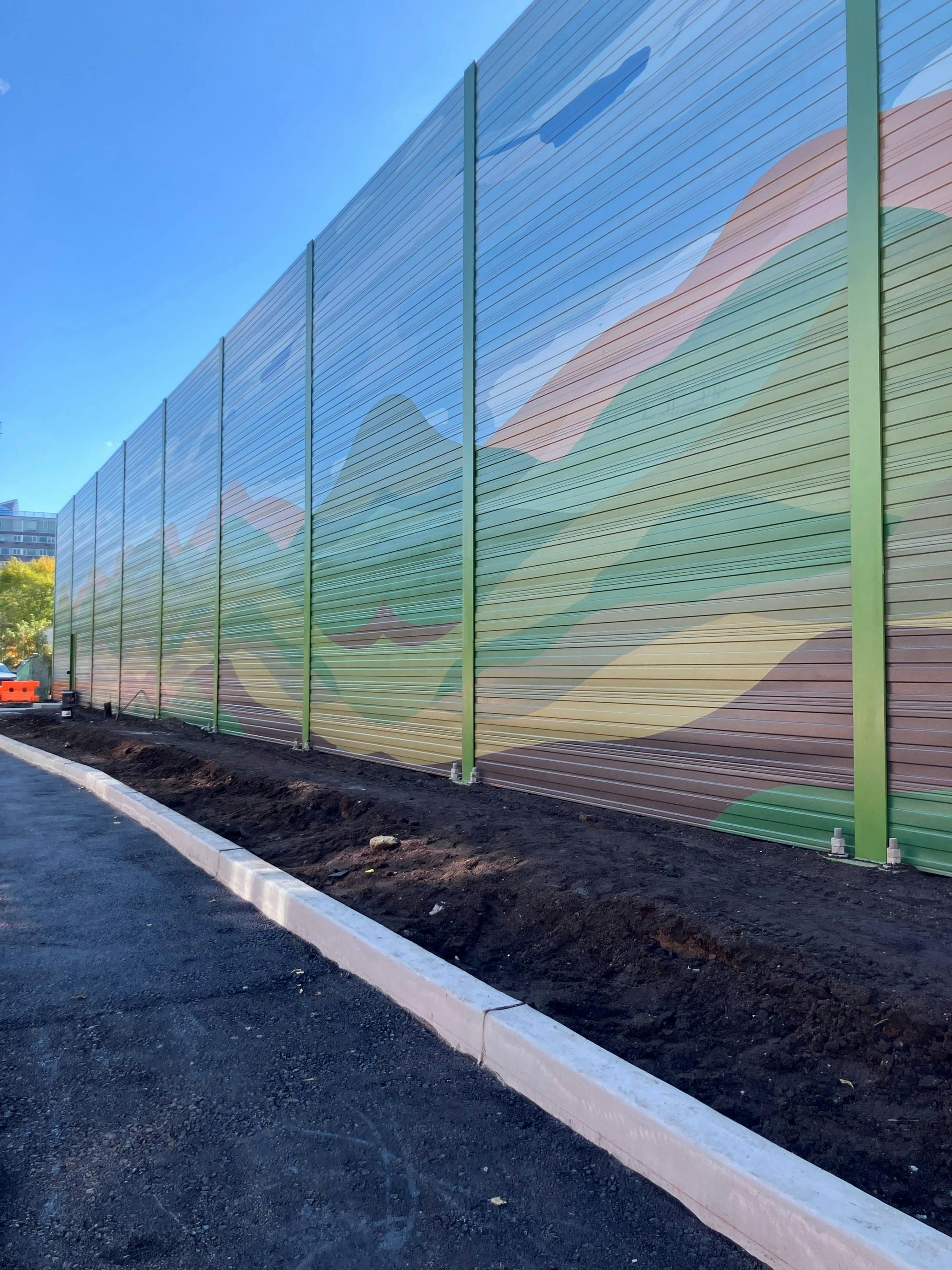

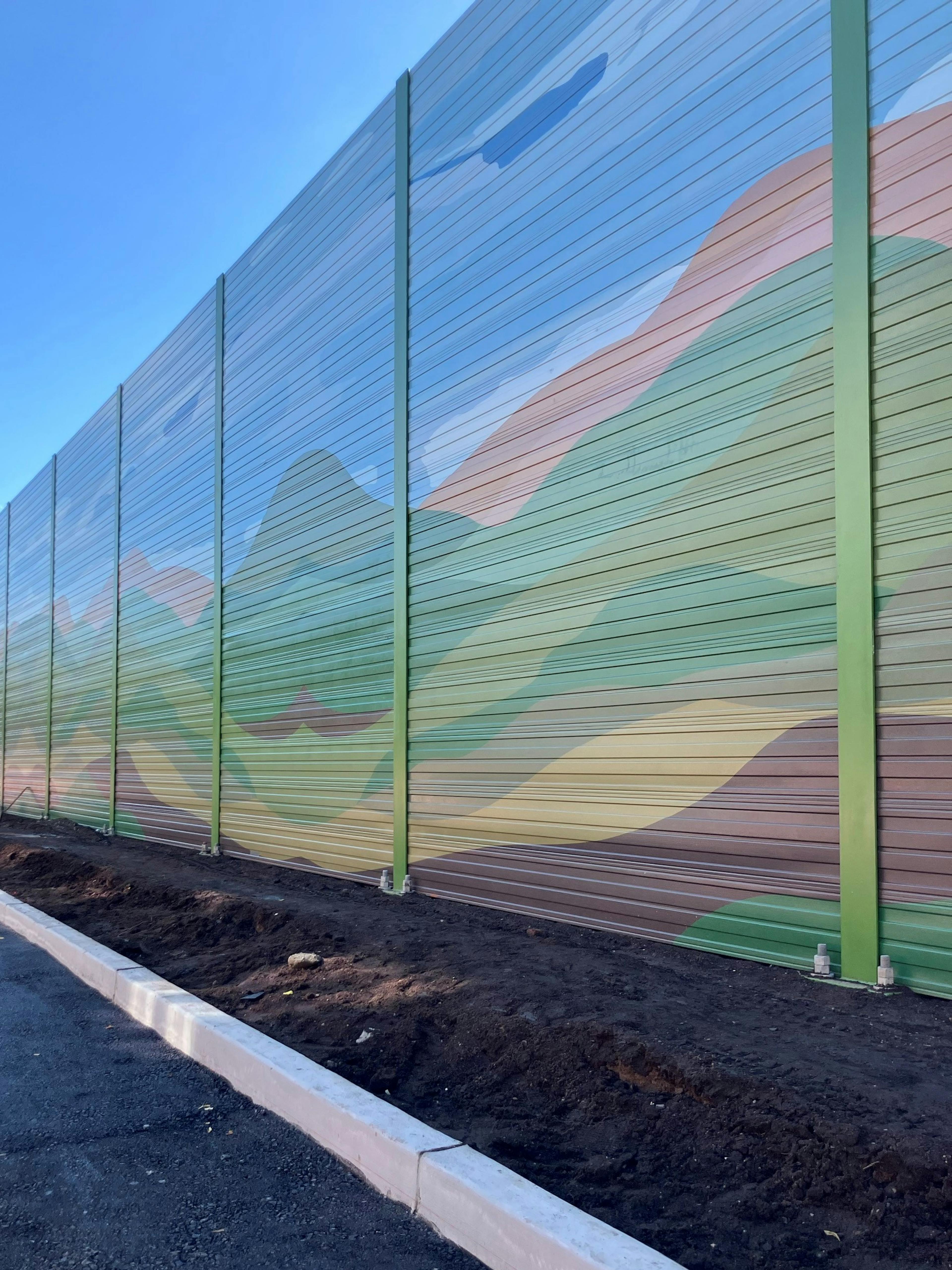

Customizable Creativity
Powder or coil coated color options allow design flexibility

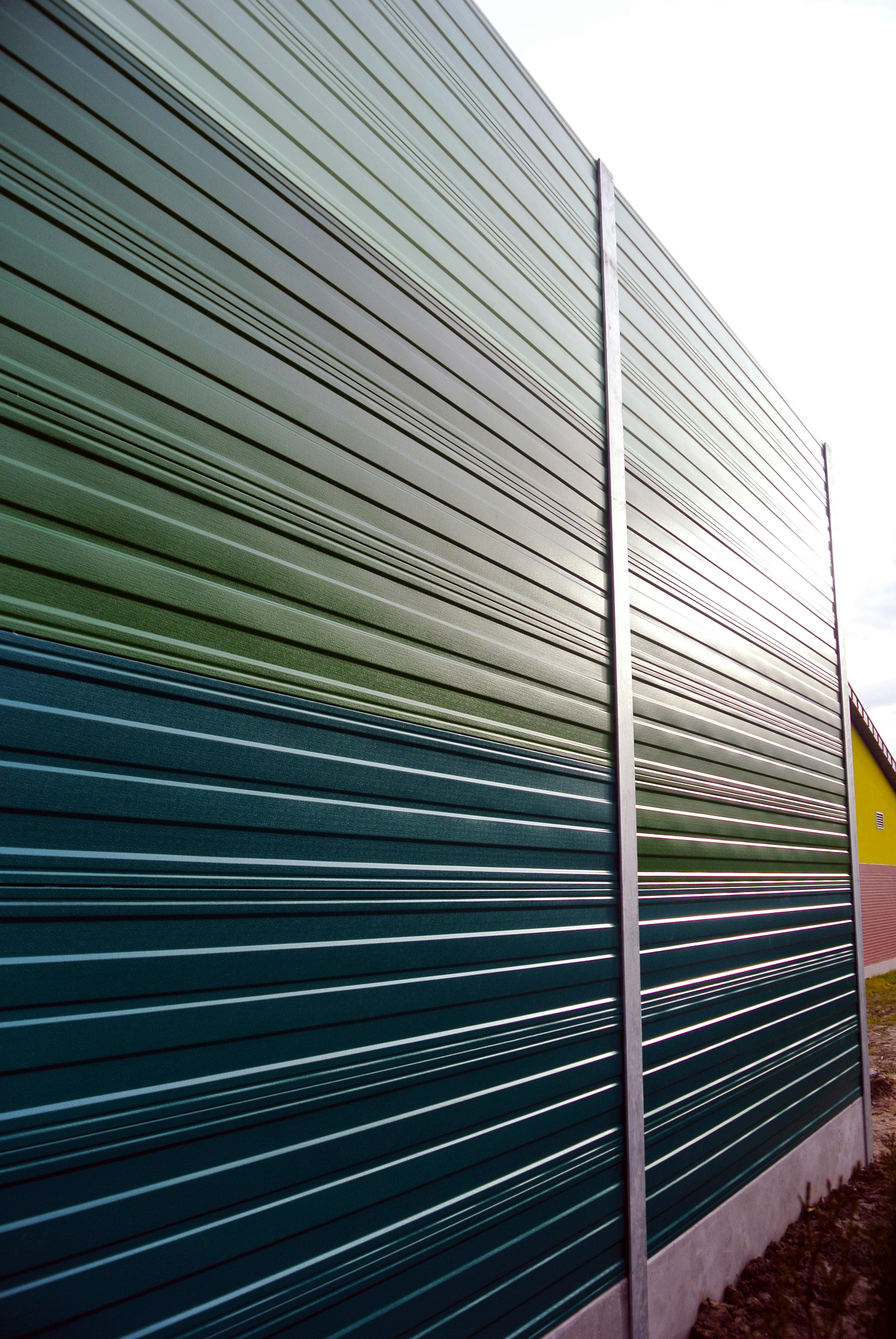

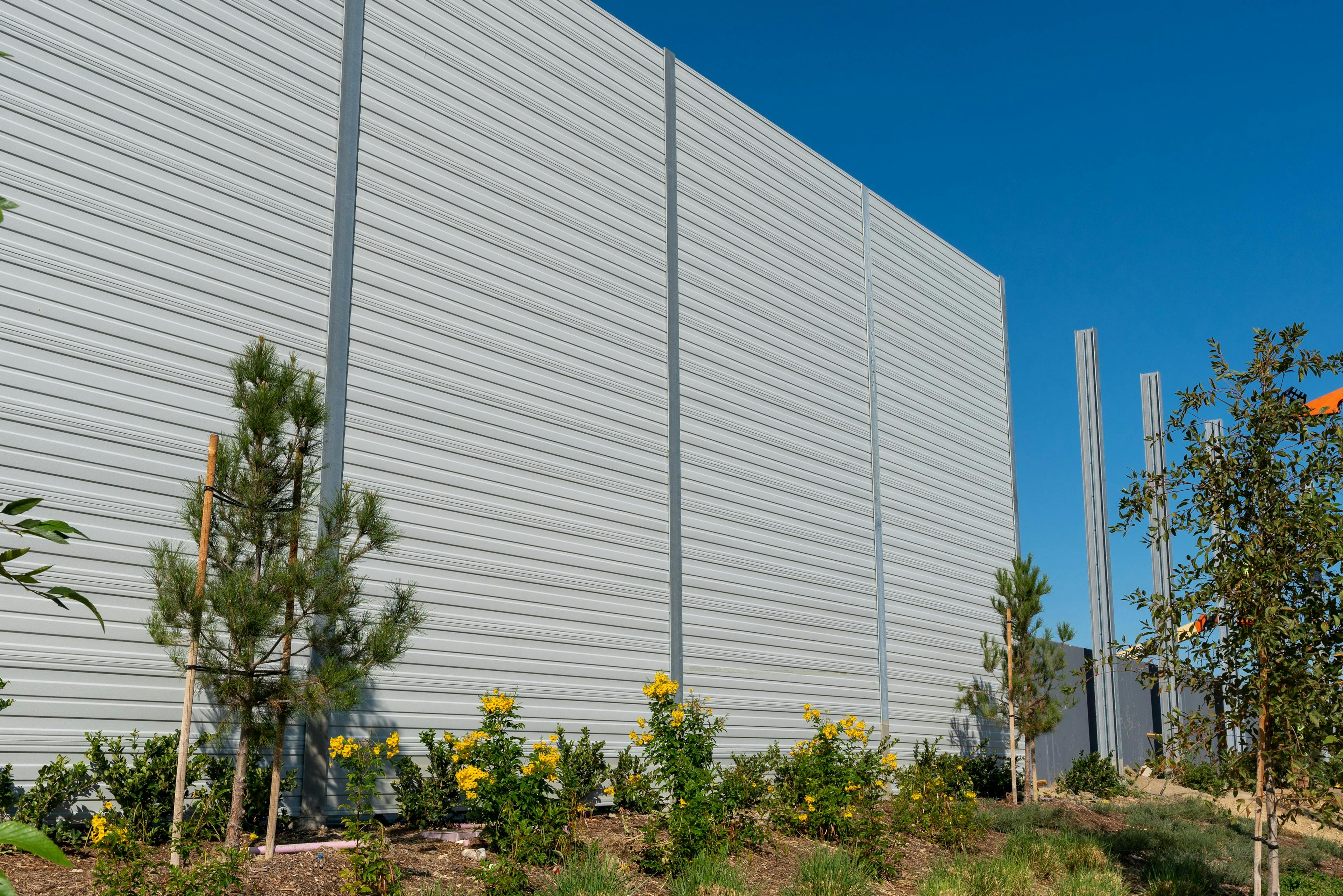

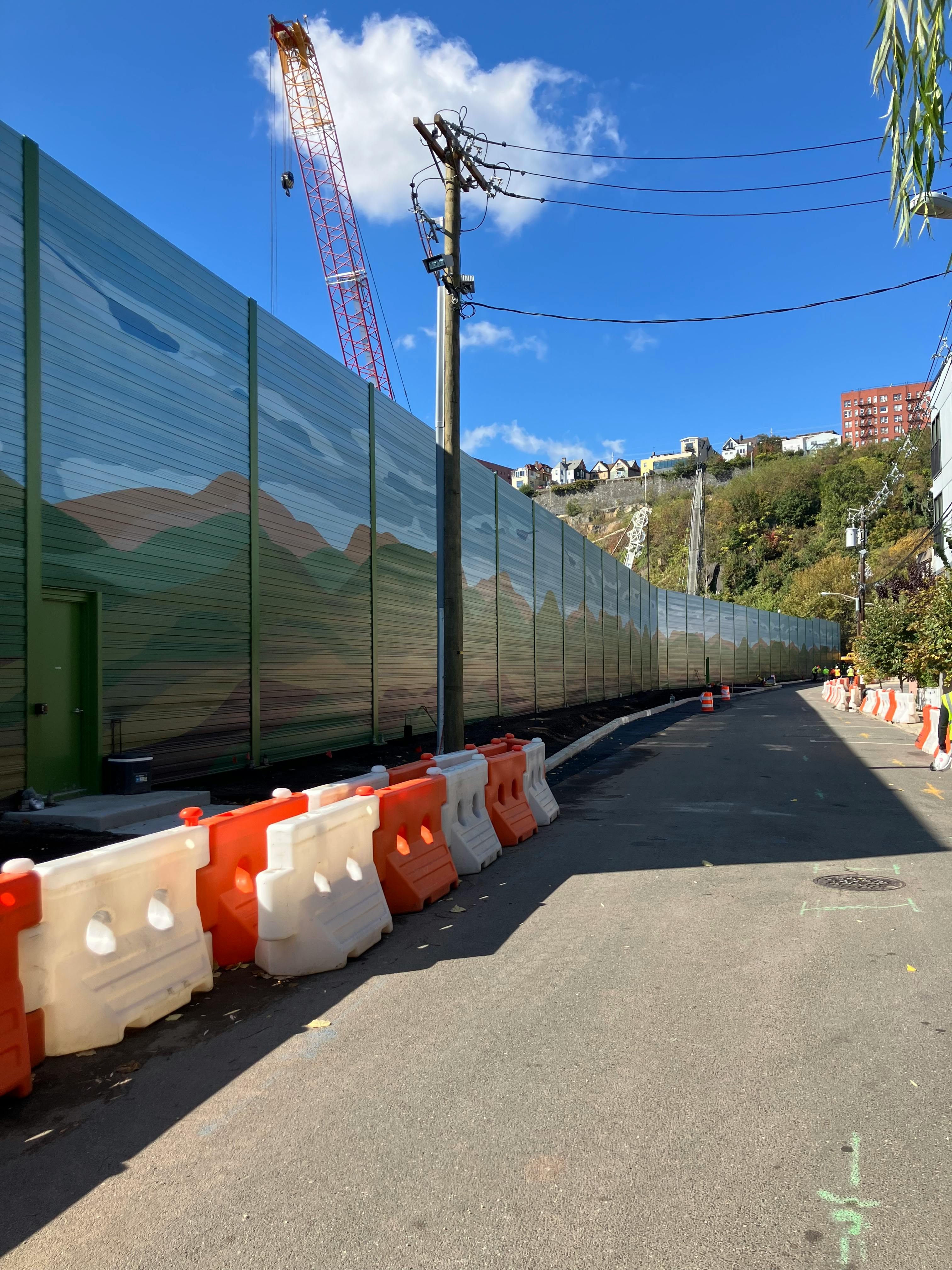

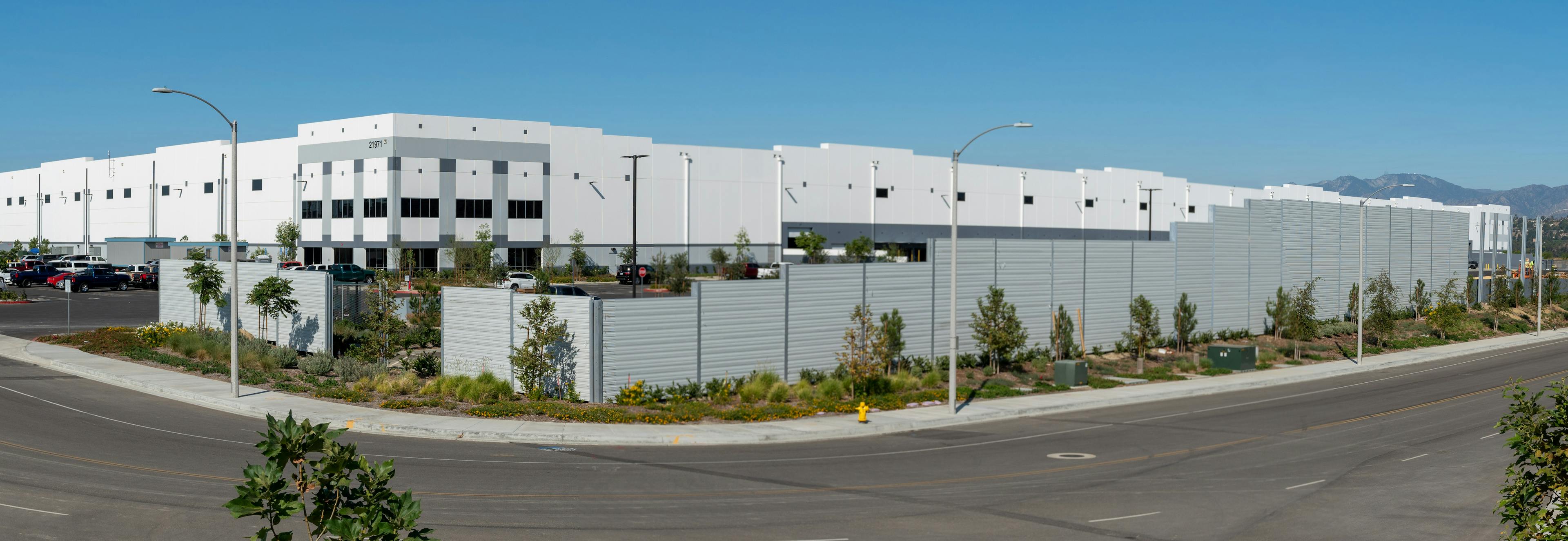

Gallery
