Cantilevered

Narrow Footprint Retaining Wall (NFRW)

A retaining solution for installations with a narrow right-of-way

Space saving earth retainment

An ideal system for grade separation applications that have a requirement for both noise attenuation and earth retainment.

75

Years of performance

MTO

DSM Listed

100%

Fully customizable

Key Benefits

Saves Space

2-in-1 System

Cost Effective

Reduce noise

Engineered System

In-house engineering delivers a design for both earth retaining and wall structure, delivered as one combined wall solution.

Noise Reduction

Noise absorption or reflective panels to alleviate noise concerns

Strong & Durable

Designed for a minimum 75-year service life (per CHBDC)
Can handle surcharge loads
Proven long-term performance

Economical Installation

Fast to construct - Panel installation independent of backfill
Minimal excavation and backfill area

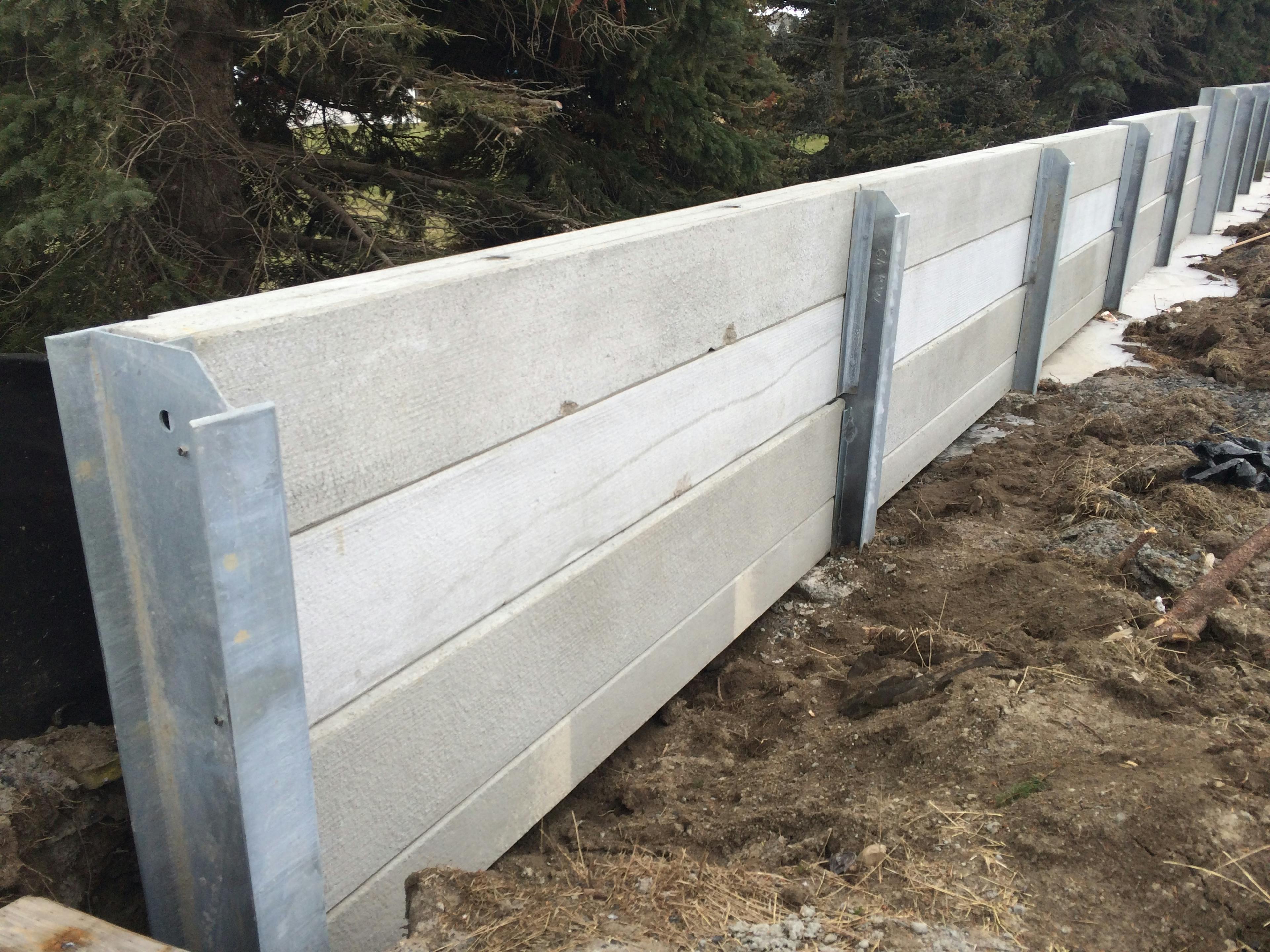

Post and panel system requires minimal lifting equipment and crew
No tie-backs and the system holds tight to lot lines
Simplifies removals and other site construction considerations

Functional

Efficient land usage - Minimizes property loss while protecting vegetation and structures.

Versatile

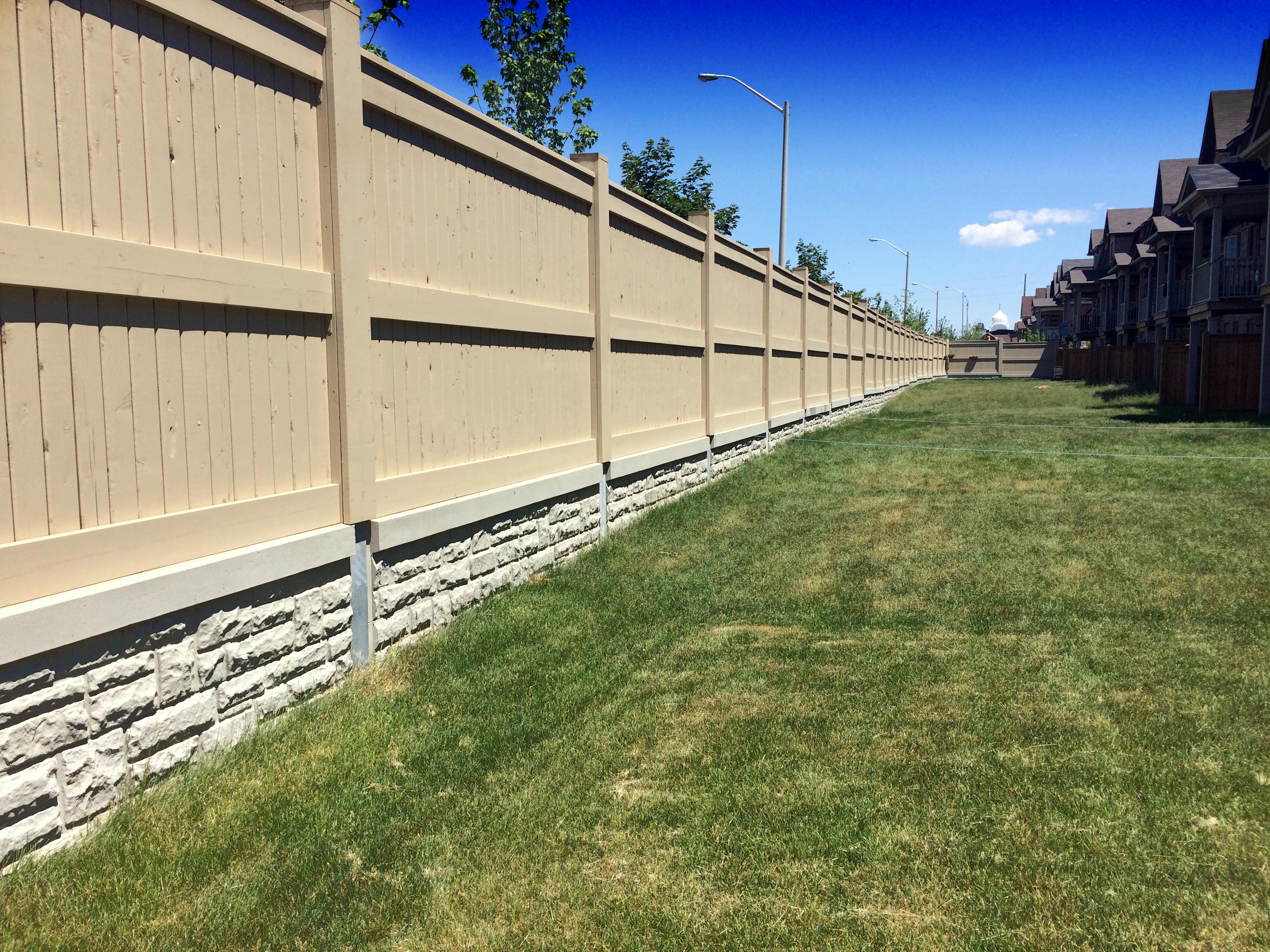

Can be integrated with noise barriers and other fencing systems.

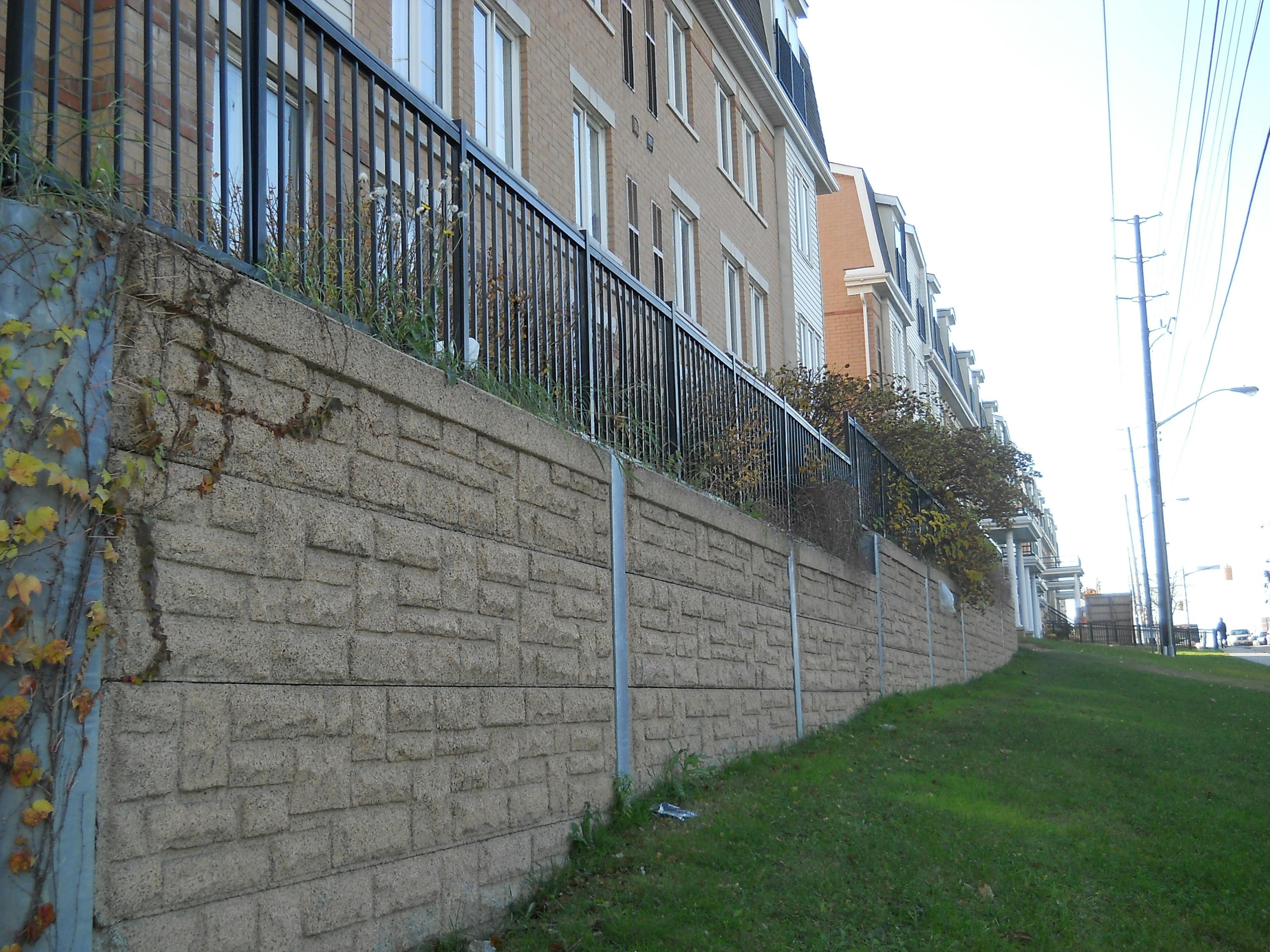

Easy integration of handrails, noise walls, headlight screens & privacy screens as a combined solution.
Variety of finishes - Absorptive or reflective panel surfaces, patterns, and colours.
Flexibility in its construction process – Can be constructed prior and subsequent to site servicing

Applications

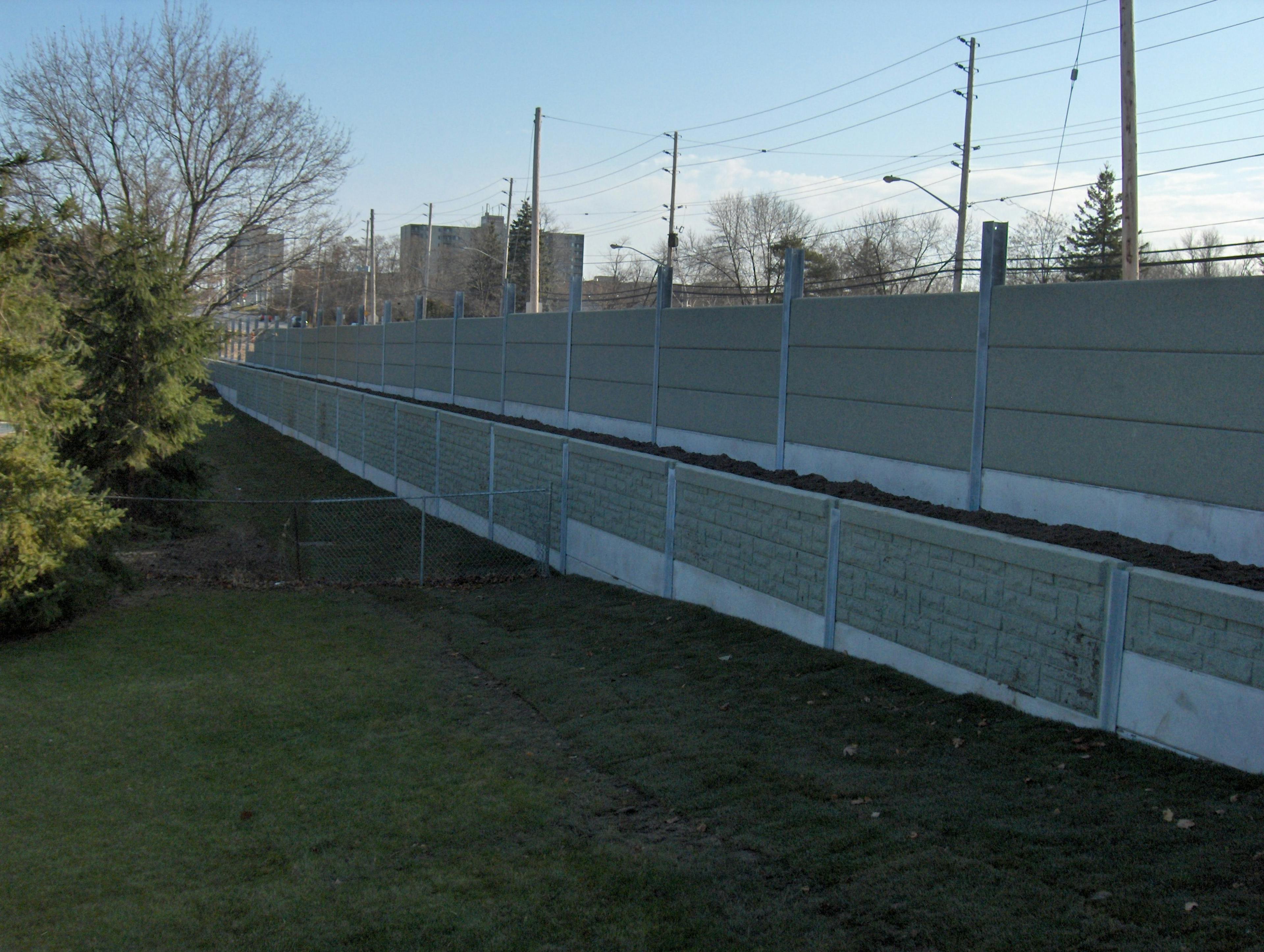

NFRWS is offered as a standalone cantilevered earth retaining wall system or integrated with additional wall systems above. Ideal for tight rights-of-way, reducing property impacts, simplifying construction, and eliminating the need for separate wall systems.
