FIRE RATED

Fire Separation Walls & Enclosures

An integral piece of the fire suppression and
control system at utility substations.

Contact us

Contain and prevent the spread of fire.

Transformer fires are a leading cause of power outages and costly repairs. Trusted by power distribution providers across North America, our fire-rated barriers are engineered to contain fires, protect critical infrastructure, and reduce risk to surrounding communities.

NFPA 850 & 851

Code Requirements

IEEE 979

compliant

2–4-hour

Fire ratings

Key Benefits

Non-conductive

Excellent dielectric properties

Noise Attenuation

Absorptive & Reflective Options

Ease of Installation

Modular assembly & disassembly

Engineered System

PE stamped expedited drawings

Features & Benefits

Engineered fire-rated wall systems that contain transformer fires, reduce noise, protect critical power infrastructure, and integrate seamlessly into surrounding communities.

Performance Features

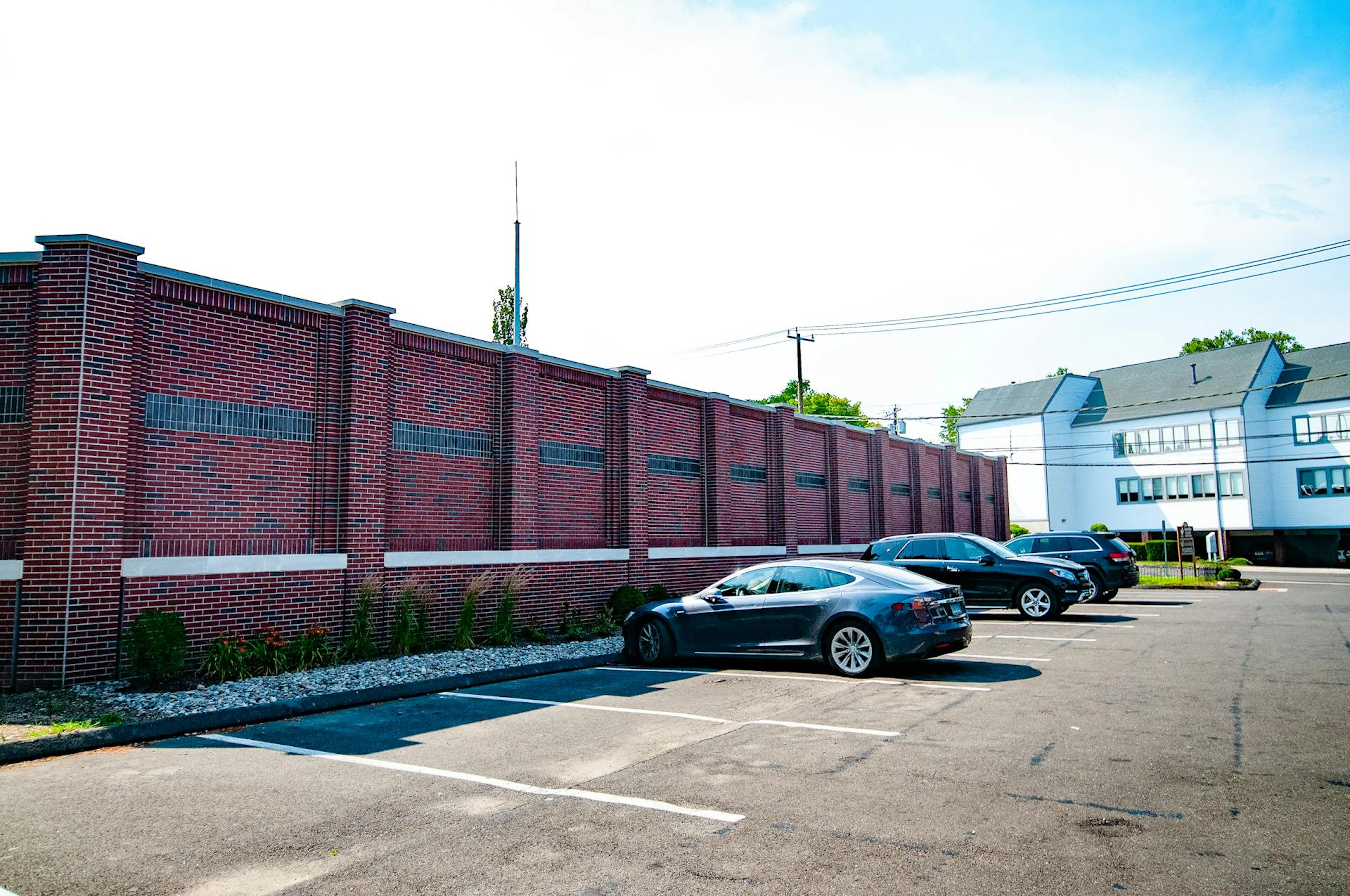

Panels come in a variety of architectural textures, patterns and colors that will fit in any neighborhood.

From standard precast concrete texture and pattern to more intricate cast custom panel work – we can match any neighborhood aesthetic.

Modular post and panel system as as easy to assemble as they are to disassemble during transformer repair and maintenance.

Alleviate noise concerns by reducing noise with reflective or absorptive noise attenuating panels.

Types of Fire Separation Walls

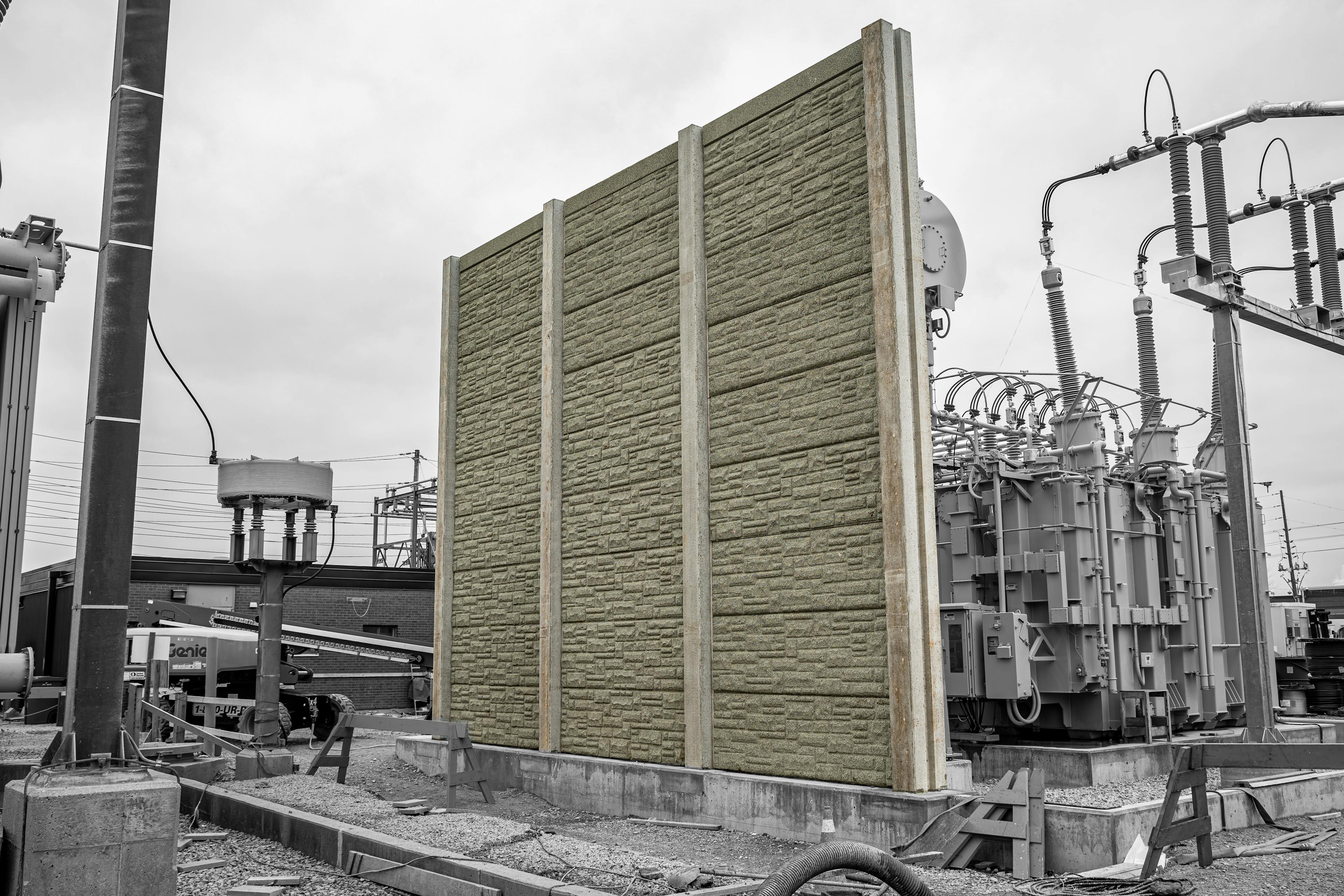

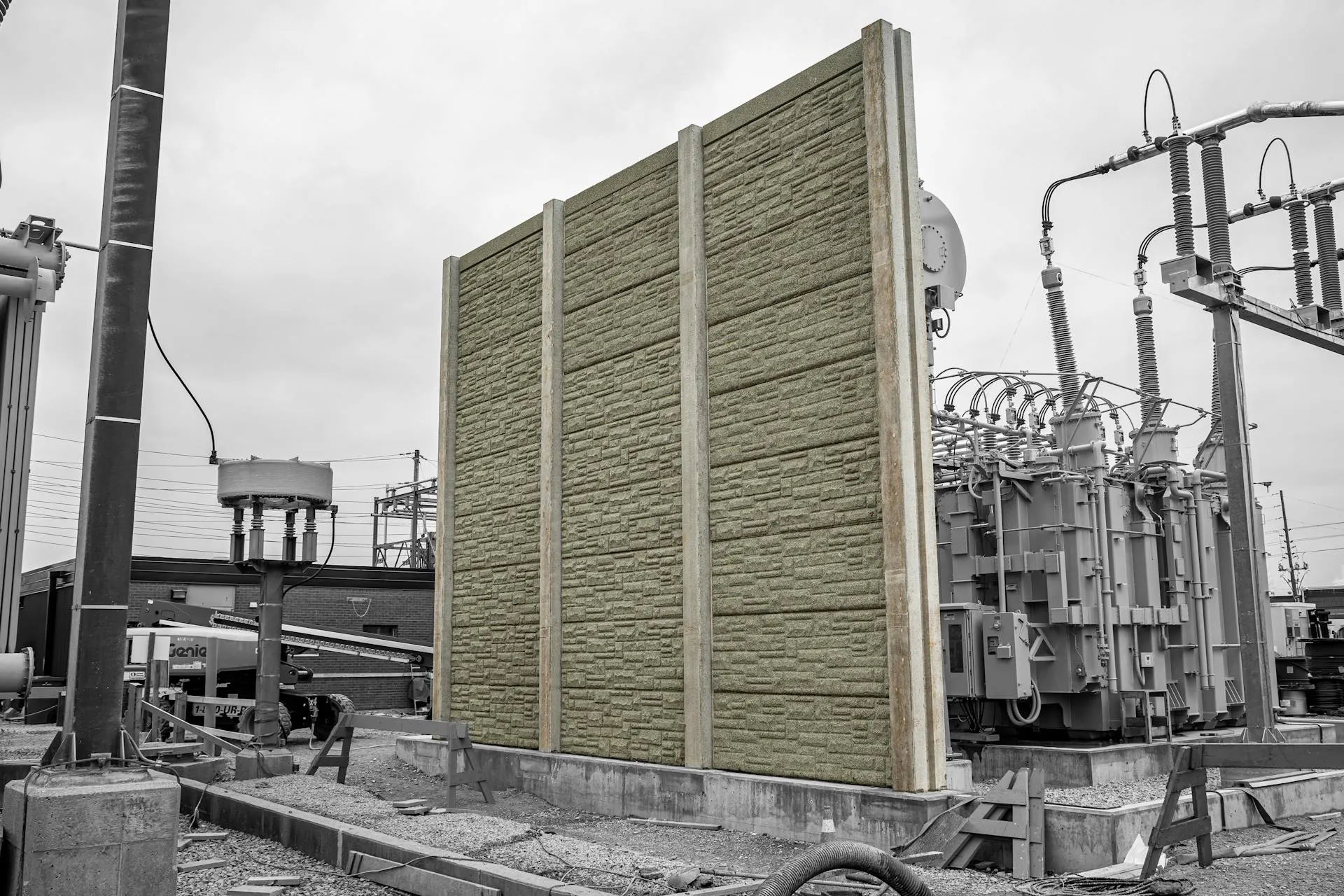

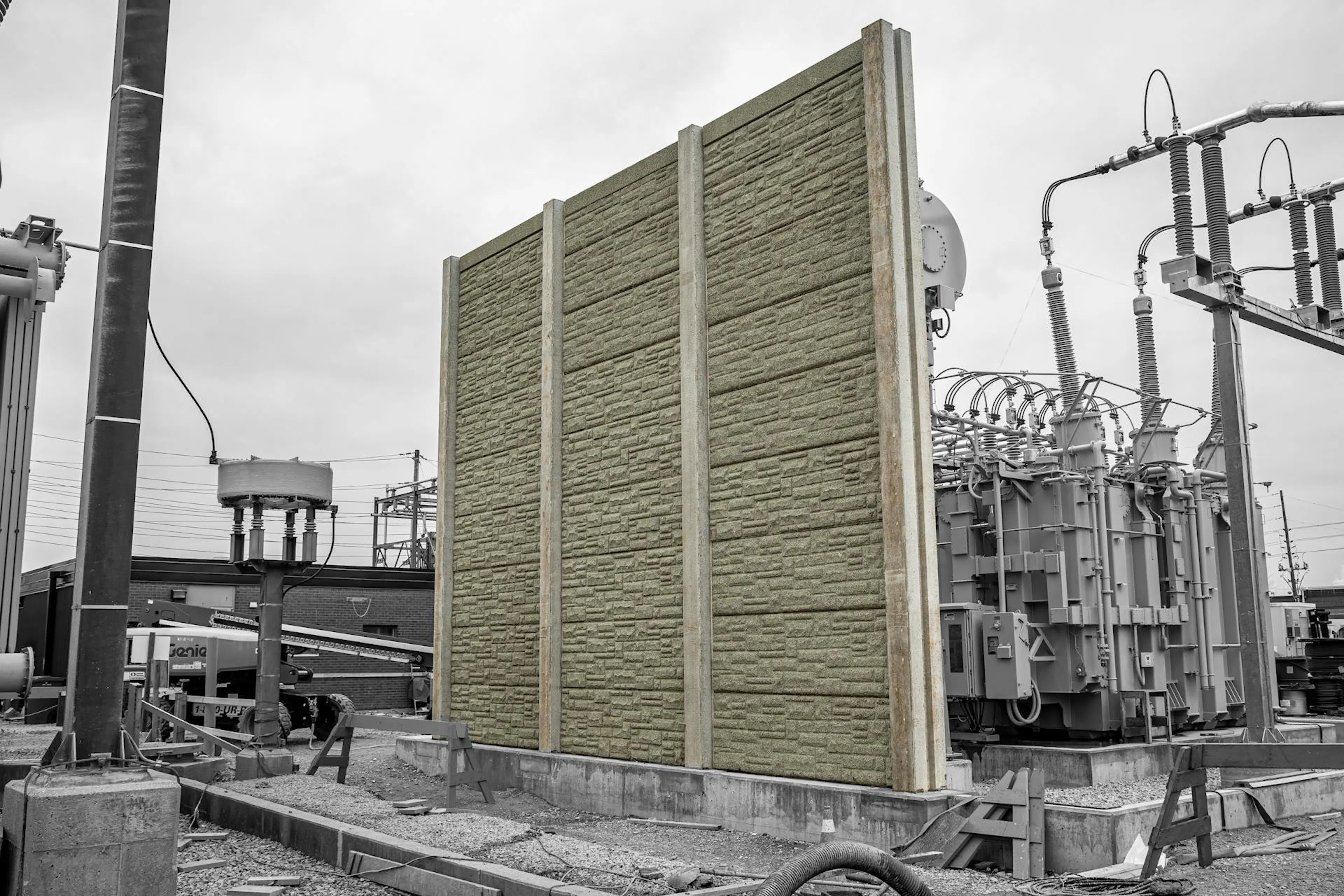

Absorptive 2-Hr Firewall

Design Details

Made with durable, lightweight and cementitious/wood composition product, Durisol® is the first absorptive noise wall in North America that prevent reverberation between walls.

  • Wall heights: up to 43ft (13m)
  • Post spacing: 15ft (4.56m) from center-to-center
  • Post type: Concrete (for fire-rated)
  • Post footings: available in either continuous foundation style or pier foundation to limit underground disturbances
  • Noise Reduction: Double sided absorptive
  • Fire Rated: ULC tested 2- hour
  • Panel Thickness: 7 inches
  • Ballistic resistance: UL 752 Levels 2,6 & 7

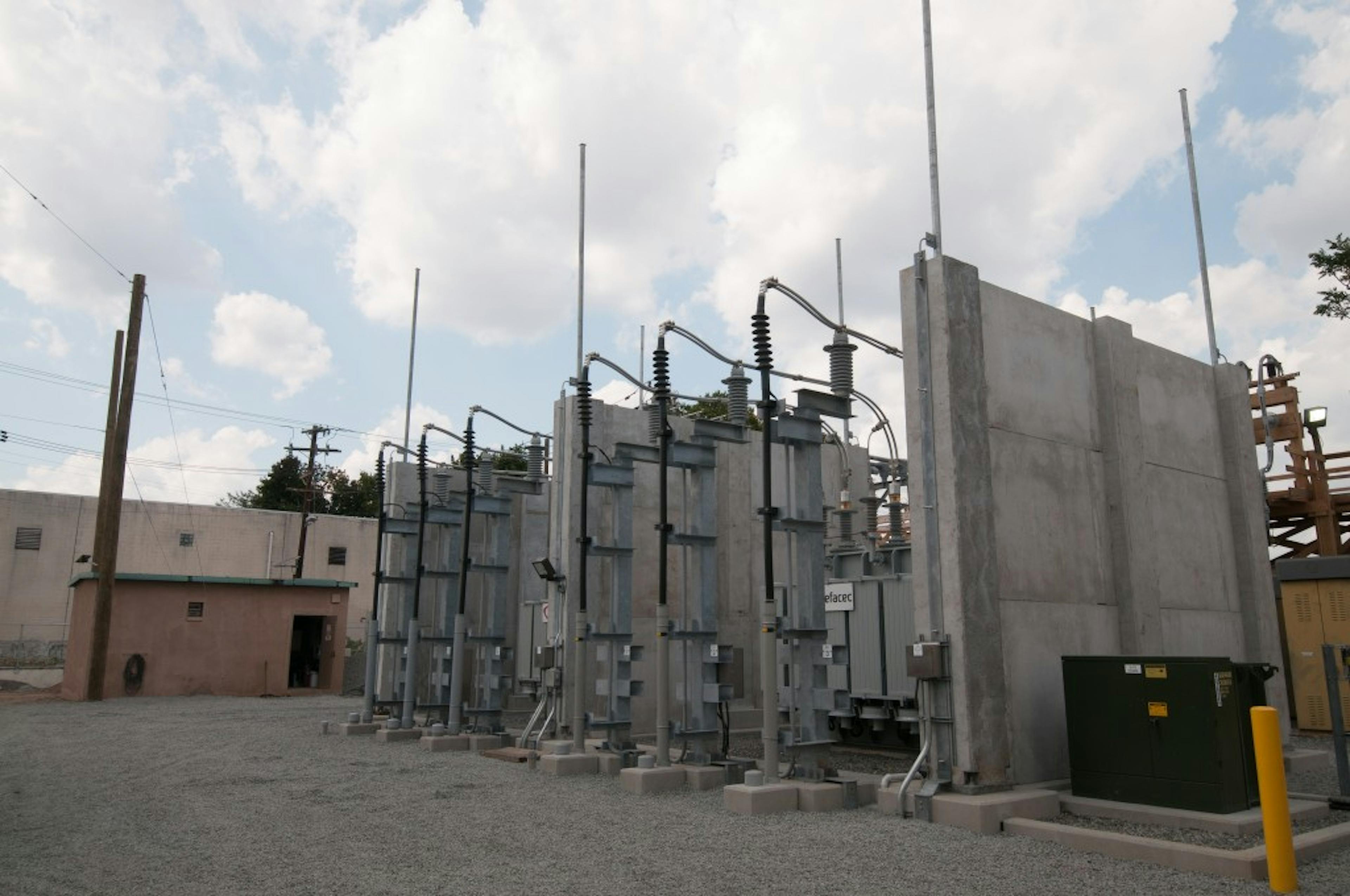

Reflective 4-Hr Firewall

Design Details

Made with solid concrete fire containment for electrical transformers that stop the spread of fire.

  • Wall height: No max height, depends on location of design
  • Post spacing: 20ft
  • Post type: Concrete (Fire rated)
  • Post footings: Continuous foundation or pier foundation to limit underground disturbance
  • Noise reduction: Reflective precast
  • Fire rated: 4-Hr per ACI 216, Table 2.1
  • Panel thickness: 8 inches
  • Ballistic resistance meeting UL 752 (level 9-10)

Key Sectors

Energy & Utilities

Durable precast solutions for substations, pipeline corridors, and critical infrastructure protection.

Learn more

Interested in Fire Separation walls?

Let's Connect

Projects

VIEW
Washington, DC

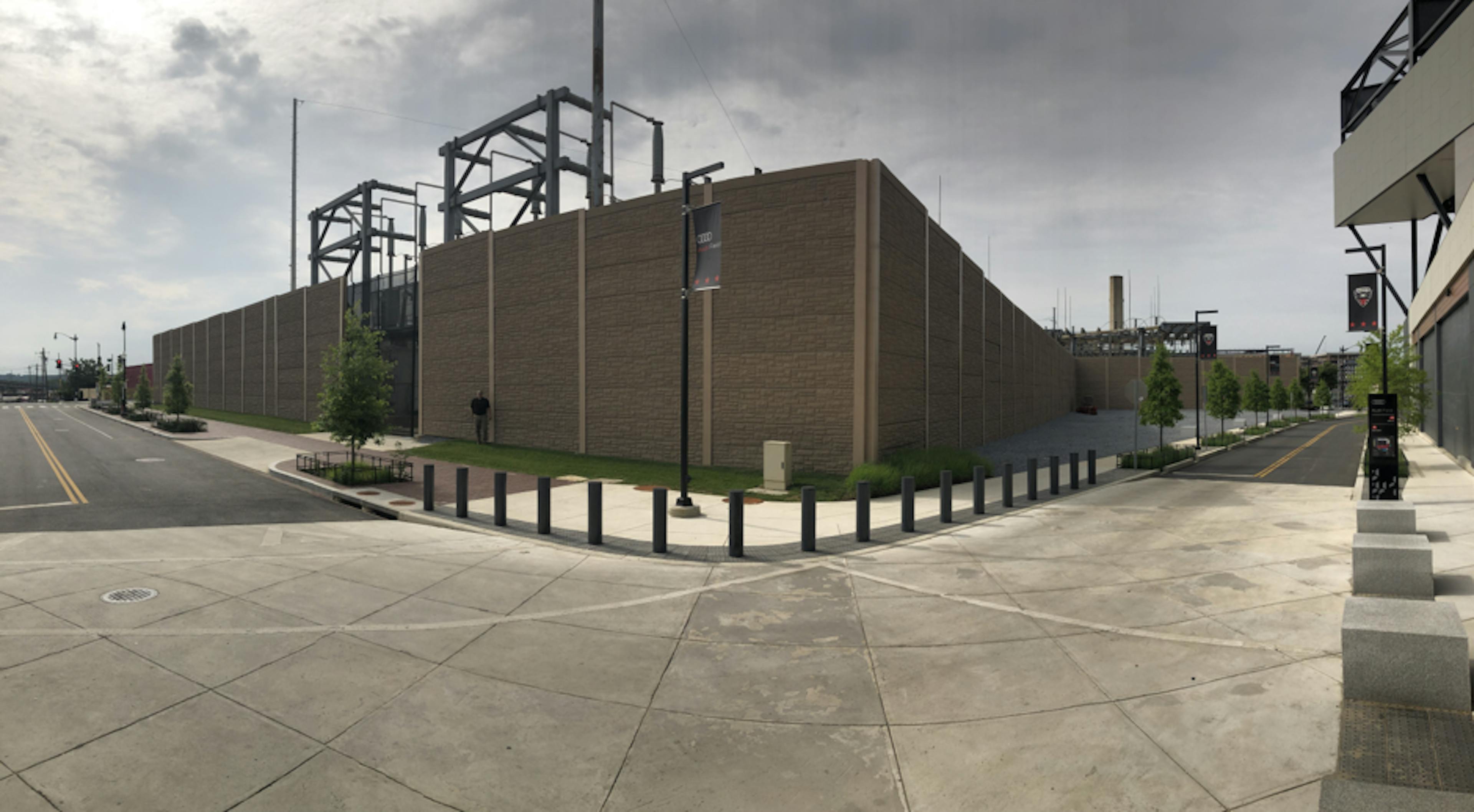

Perimeter Wall for DC community

As an industrial waterfront area of Washington, D.C. made way for a new condo development, the transformation called for some creative solutions to ac...

VIEW
Montreal, QC, Canada

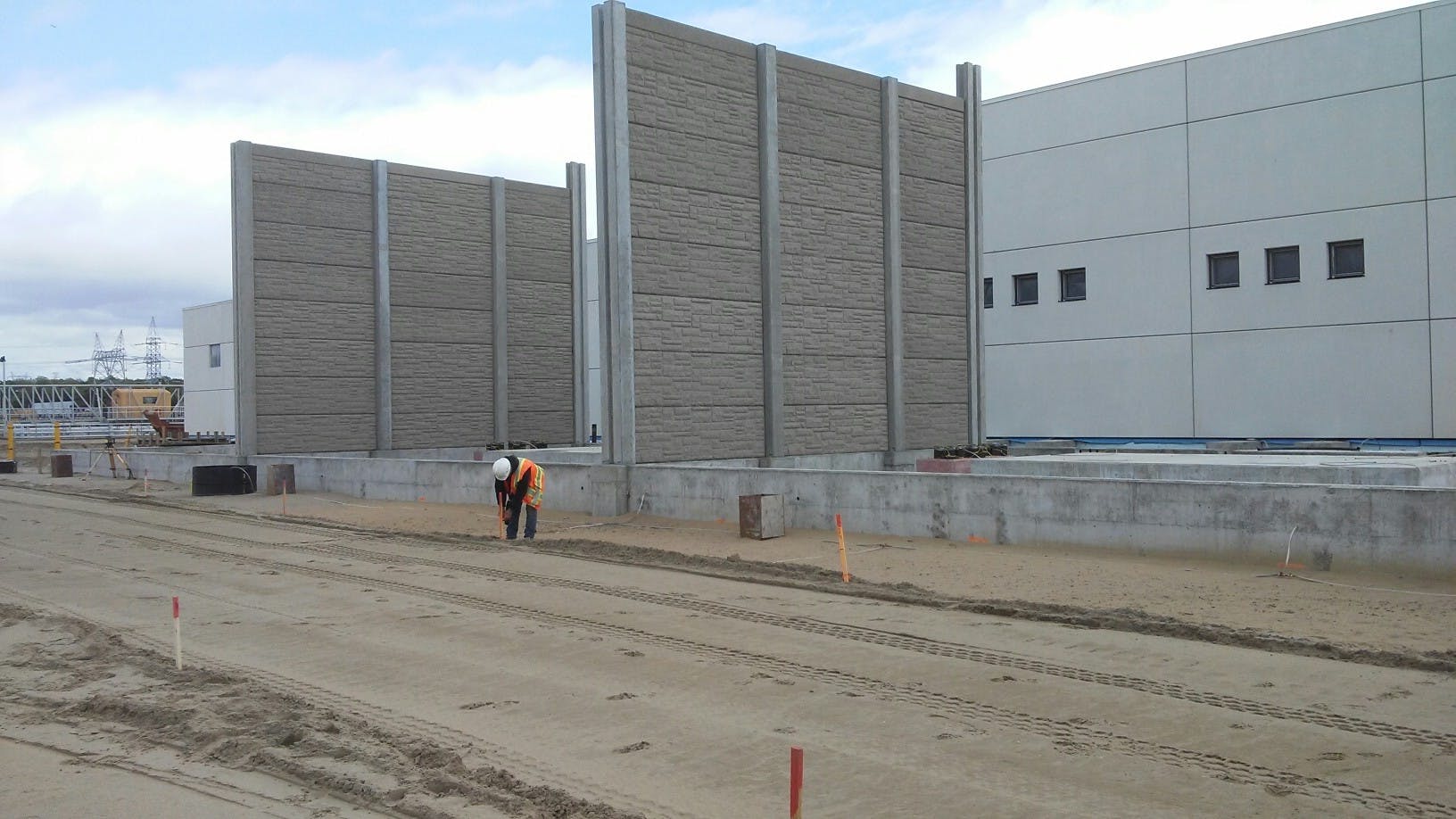

Station Jean R Marcotte Firewall Protection

Station Jean-R.-Marcotte is a wastewater treatment plant located on the eastern tip of the island of Montréal, Quebec, Canada. In this Design-Build pr...
